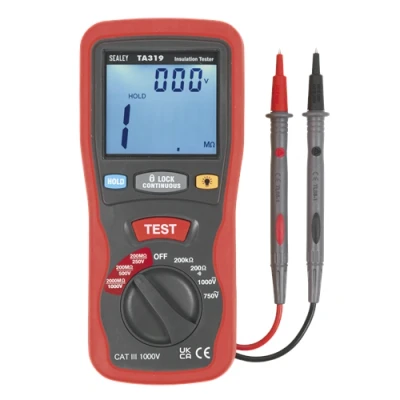

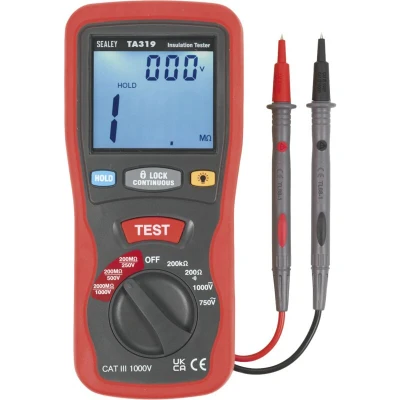

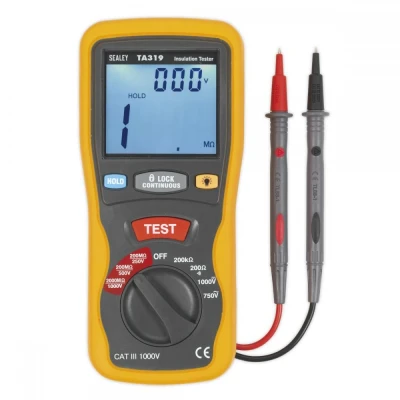

Sealey Digital Insulation Tester

Electrical World

• Specially designed for testing insulation on high voltage cables.• Suitable for hybrid and electric vehicles.• Supplied with test leads, batteries and storage case.• Conforms to EN61010 CAT III (1000V).Specially designed for testing insulation on high voltage cables. Suitable for hybrid and electric vehicles. Supplied with test leads, batteries and storage case. Conforms to EN61010 CAT III (1000V).• Specially designed for testing insulation on high voltage cables. • Suitable for hybrid and electric vehicles. • Supplied with test leads, batteries and storage case. • Conforms to EN61010 CAT III (1000V). • Model No. TA319Technical Specification:Nett Weight: 1.29kgVoltage AC: Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)Voltage DC: Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)Resistance: Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)Insulation Resistance: Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)Test Voltage: 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩContinuity Test: Active Sound Level; ≤40Ω, Test Current; ≤200mAOperating Temperature: 0ºC to +40ºC, (

ManoMano

General description Sealey Digital Insulation Tester is specially designed for testing insulation on high voltage cables, making it suitable for hybrid and electric vehicles. It is a reliable tool for ensuring the safety and integrity of electrical systems. Technical specifications Model No.: TA319 Conforms to: EN61010 CAT III (1000V) Compatibility and accessories Supplied with test leads Includes batteries Comes with a storage case
