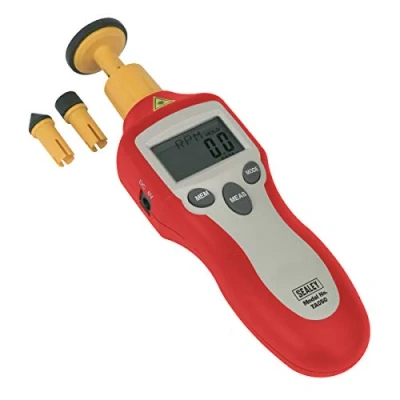

Sealey Digital Tachometer Contact/Non Contact

The Digital Tachometer is a professional quality laser instrument designed for fast and accurate measurement of rotational speed, offering both contact and non-contact measurement options. With its advanced features, this tachometer serves as an essential tool for technicians and engineers looking to gauge various parameters with precision.

Key Features

- Versatile Measurement Capabilities

The tachometer is capable of measuring rotational speed, total revolutions, frequency, surface speed, and distance. Whether you need to monitor high-speed engines or assess the functionality of machinery, this device delivers reliable results across a wide range of applications.

- High Precision and Accuracy

With a measurement range of 2-20,000 rpm for contact and up to 99,999 rpm for non-contact measurements, the instrument ensures that users receive precise readings. Its accuracy is rated at ± (0.05% + 1 digit), which guarantees that your measurements will be trustworthy and consistent.

- User-Friendly Memory Function

The tachometer features ten selectable data set memories that allow users to store maximum, minimum, average, or single value readings as appropriate. This functionality is particularly crucial for extended testing sessions, enabling users to easily retrieve past measurements for comparison or analysis.

- Non-Contact and Contact Measurement Options

Supplied with reflective tape for non-contact measurement and three contact measurement heads, the tachometer provides flexibility in how measurements can be taken. This versatility ensures that users can choose the method that best suits their specific requirements.

- Power Supply Options

The device operates on a 9V battery (included) but also features a jack socket for a 6V DC power supply, providing further convenience and flexibility when using the instrument in various settings.

Technical Specifications

- Nett Weight: 0.26 kg

- Sampling Time: 0.5 seconds at >120 rpm

- Surface Speed Readings: m/min, in/min, ft/min, yd/min

- Distance Measurement Units: m, in, ft, yd

- Frequency Measurement: Hz

- Dimensions: Length: 57 mm x Height: 183 mm

- Total Weight: 0.322 kg

- Warranty: 1 year

This Digital Tachometer is an invaluable tool for professionals, ensuring accuracy and efficiency in a wide range of applications. Whether measuring rotational speed, calculating surface speed, or tracking total revolutions, its robust design and advanced functionalities make it an ideal choice for all your measurement needs.
