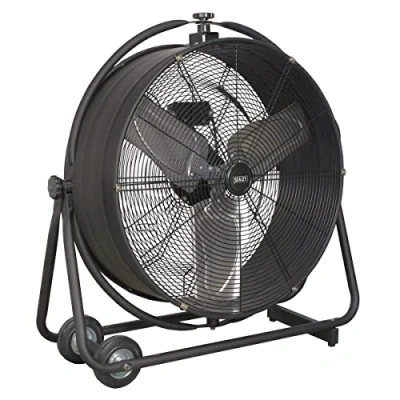

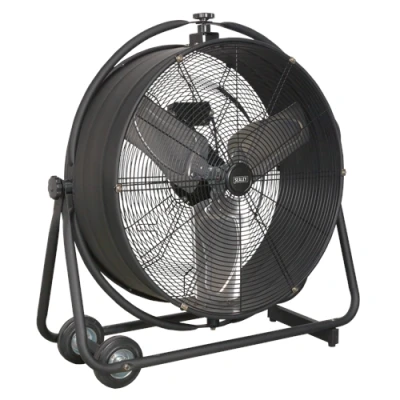

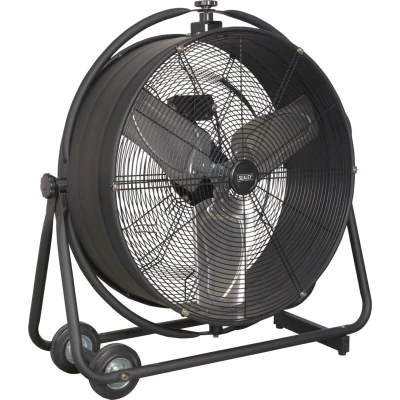

Sealey Industrial High Velocity Orbital Drum Fan 24" 230V

The High Velocity Industrial 2-Speed Drum Fan is designed to facilitate the efficient movement of large volumes of air, making it an essential tool in various environments such as industrial settings, commercial spaces, agricultural areas, automotive workshops, and showrooms. With its robust construction and high performance, it is tailored to meet the demanding needs of professional applications.

Design and Construction

This fan features a heavy-duty gauge steel casing, guard, and frame that provide enhanced durability and longevity. Its sturdy build ensures that it can withstand the rigours of industrial use, while the carefully balanced and fully guarded blades contribute to both safety and quiet operation. The fan's design also includes a 360° tilt function, allowing users to direct airflow precisely where it is needed, thereby maximizing efficiency.

Technical Specifications

- Maximum Airflow: 155.3 m³/min (5484 cfm)

- Fan Diameter: Ø610 mm (24 inches)

- Current: 0.52 A

- Power: 116.32 W

- Maximum Fan Flow Rate (F): 155.3 m³/min

- Fan Sound Power Level (Lwa): 84 dB(A)

- Maximum Air Velocity (c): 3.7 m/sec

- Speed Range: 1100-1350 rpm

- Speeds: 2

- Supply Voltage: 230 V

- Nett Weight: 17.11 kg (approximately 37.7 lbs)

- Overall Dimensions: Length 296 mm x Height 875 mm

- Warranty: 1 year

- Model No: HVF24S

<a class='cat-link' href='https://bigshopper.co.uk/brand/performance/'>Performance</a> and Application

This industrial fan operates at two speed settings, allowing for versatile airflow management to suit various tasks. With a substantial maximum airflow rating, it excels in applications requiring significant air movement, such as drying, cooling, or improving ventilation in large areas. Whether used in warehouses, workshops, or during agricultural processes, this fan performs consistently and reliably.

User-Friendly Features

The fan comes equipped with a 3-pin plug, ensuring straightforward connectivity to standard power sources. Its mobile design combined with the 360° tilt feature enhances usability, allowing operators to reposition the fan easily and adjust airflow direction without hassle.

In summary, the High Velocity Industrial 2-Speed Drum Fan is a powerful and versatile solution for effective air movement in industrial and commercial applications. Its robust build, efficient performance, and practical features make it an invaluable tool for anyone needing to improve airflow in large spaces. With a focus on safety, durability, and user-friendliness, this fan is set to meet the challenges of demanding work environments.
