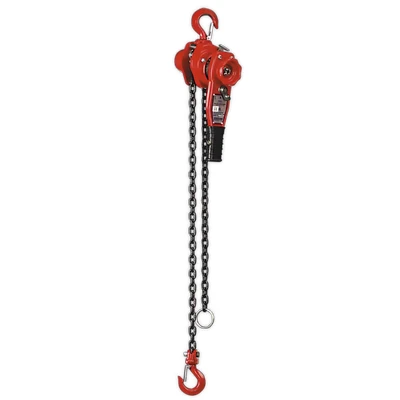

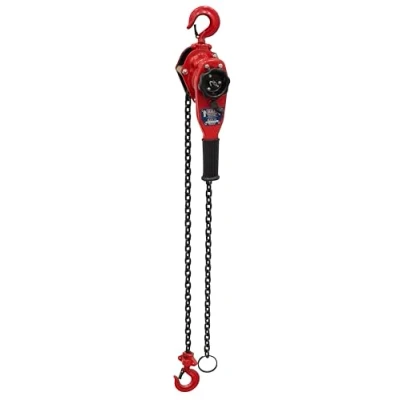

Sealey Lever Hoist Steel 750kg

The LH750 lever hoist is engineered for demanding applications, combining robust construction with exceptional safety features. With a capacity of 750kg and a test load of 1125kg, this hoist is designed to perform under heavy loads while ensuring durable and reliable operation.

Construction and Design

The hoist's rugged construction features a drop-forged and heat-treated pinion gear, providing superior strength and reliability. The mechanisms are totally enclosed, protecting them from external elements and wear, which extends the life of the tool. The heavy-duty brake system enhances safety during operation, preventing accidental load drops.

Operational Features

Equipped with a high-quality alloy steel chain, the LH750 ensures longevity and resistance against wear. The chain is designed to handle a range of applications, providing a secure and stable lifting mechanism. Additionally, the free-chaining feature allows users to manually take up any slack in the load chain before engaging the ratchet arm, making it easier to position loads precisely.

Specifications

- Model No: LH750

- Capacity: 750kg

- Test Load: 1125kg

- Pull on Lever to Lift Full Load: 14kgf

- Chain Falls: 1

- Chain Length: 1.5m

- Lever Length: 280mm

- Head Room: 275mm

- Overall Dimensions (W x D): 136mm x 148mm

- Operating Clearance: 99mm

- Hook Aperture: 25mm

- Maximum Hook Capacity: 37mm

- Nett Weight: 7kg (approximately 4.41 pounds)

Safety and Reliability

The LH750 hoist is engineered with user safety in mind. The heavy-duty brake securely holds the load, minimizing risk during operation. With its robust construction and high-quality materials, this hoist is built to withstand the rigours of industrial environments while ensuring safe and effective handling of heavy loads.

Conclusion

The LH750 lever hoist is an indispensable tool for anyone requiring reliable lifting solutions. Its heavy-duty construction, coupled with thoughtful operational features and user-focused design, makes it suitable for a variety of applications, from construction sites to workshops. Whether for lifting, pulling, or securing loads, the LH750 lever hoist provides a dependable solution that meets demanding performance standards, making it a valuable addition to any toolkit.
