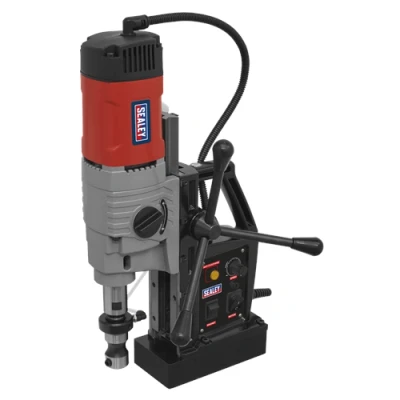

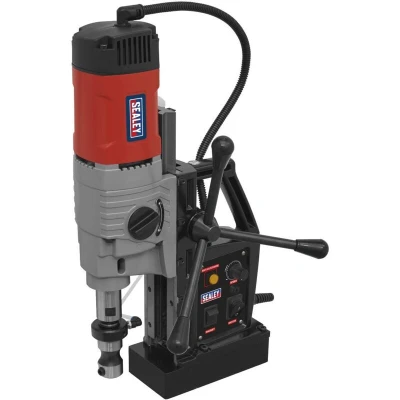

Manufactured using high-quality components, this heavy-duty drilling and tapping machine delivers exceptional performance and reliability. Constructed from a robust die-cast magnesium alloy, it boasts a variable speed gearbox for enhanced accuracy, making it an ideal choice for various applications in fabrication, construction, and metalwork.

The machine is equipped with a powerful magnet, ensuring it remains securely adhered to ferrous metal surfaces at any angle. This feature is crucial for maintaining stability while drilling or tapping, allowing for precise and consistent results. The innovative design includes a double dovetail groove that increases the stroke length, thereby improving versatility and efficiency during operation.

An integrated coolant system enhances performance by extending the life of the cutters and improving the quality of the cut. This system is particularly beneficial for heavy-duty tasks, ensuring optimal functioning even under demanding conditions. Safety is paramount, and this unit includes a fixing strap to provide additional security during use, minimizing the risk of accidents.

The machine is compatible with a variety of tools, including a 16mm twist drill chuck and M8 to M20 tapping chucks. This versatility allows users to adapt the machine for different drilling and tapping needs, catering to a wide range of project requirements.

Technical Specifications

- Magnet Adhesion: 17000N

- Maximum Annular Cutter Capacity: 60mm

- Maximum Cutter Depth: 50mm

- Motor Power: 1880W

- Nett Weight: 22.50kg

- No-Load Speed: 220/380rpm

- Core Drill Diameter: 60mm

- Twist Drill Diameter: 23mm

- Tapping Drill Diameter: M8 - M20

- Power Supply: 220V - 50Hz

- Magnetic Adhesion: 17000N

- No-Load Speed: 0-380rpm

- Cutting Depth: 50mm

- Morse Taper: MT3

- Stroke Length: 220mm

- Dimensions: Length: 195mm x Height: 505mm

- Weight: 26.3kg

- Warranty: 1 year

With its high-performance features and durable construction, this drilling and tapping machine is a valuable addition to any workshop or job site. Whether you are drilling, tapping, or working on fabrication projects, this versatile tool meets a wide range of metalworking needs, delivering reliability and quality in every application.
