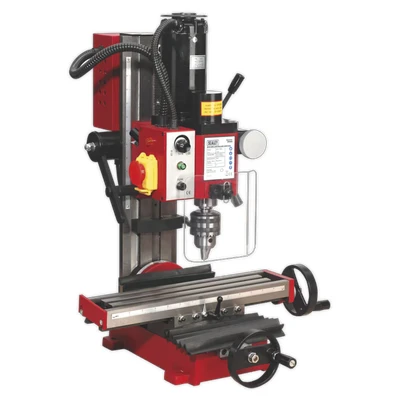

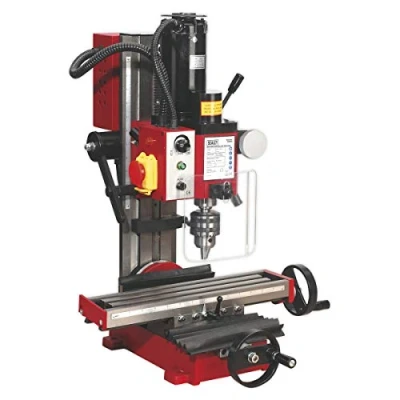

Sealey Mini Drilling & Milling Machine

Experience the versatility of our bench mounting mini drilling/milling machine, designed to effortlessly handle a wide range of materials. Boasting a robust 350W motor and variable speed drive, this machine empowers you to achieve precise results in various projects, whether for hobbyists or professionals.

Key Features

- Powerful Motor: The 350W motor provides ample power for drilling and milling tasks, allowing you to work efficiently and effectively across multiple material types.

- Variable Speed Drive: Featuring a variable speed drive, this machine enables you to adjust spindle speeds for both high (0-2500rpm) and low (0-1100rpm) ranges, catering to the specific requirements of your workpiece.

- Working Table: The large working table, equipped with T-slots, facilitates secure clamping of workpieces. The metric graduated compound scales ensure precise measurement, enhancing your overall accuracy during operations.

- Tilting Column: The integrated tilting column permits drilling or milling at angles up to ±45° from the vertical. This feature significantly expands your range of operation, allowing for intricate and complex projects.

- Chuck Accessory Kit: Supplied with a 13mm chuck and accessory kit, the machine provides everything you need for easy adjustment and setting, making it user-friendly right out of the box.

- Safety Compliance: This mini drilling/milling machine complies with the Safety of Machinery (Safety) Directives 1992 and its amendments, ensuring it is both safe and reliable for everyday use. It also holds full CE approval, meeting high European standards.

Specifications

- Cross Axis: 100mm

- Drilling Capacity (Chuck Size): 13mm

- End Mill Capacity: 16mm

- Face Mill Capacity: 30mm

- Headstock Travel: 180mm

- Longitudinal Axis: 220mm

- Motor Power: 350W

- Nett Weight: 68kg

- Spindle Nose Taper: MT3

- Spindle Speed - High Range: 0-2500rpm

- Spindle Speed - Low Range: 0-1100rpm

- Spindle Tilt Angle: ±45°

- Electrical Supply: 230V

- T-Slot Size: 12mm

- Dimensions: 485mm (Length) x 700mm (Height)

- Weight: 57kg

- Warranty: 1 year

An optional stand (Model No. SM3002ST) is also available to complement this machine, providing additional stability and ease of use.

With a comprehensive range of accessories available, this bench mounting mini drilling/milling machine is the ideal addition to any workshop, elevating your craftsmanship with its flexibility and precision. Whether you're a DIY enthusiast or a professional craftsman, this machine is designed to meet your needs and exceed your expectations.
