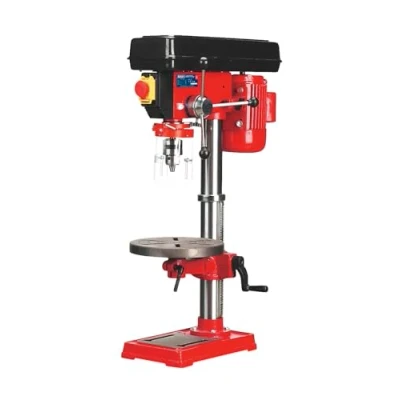

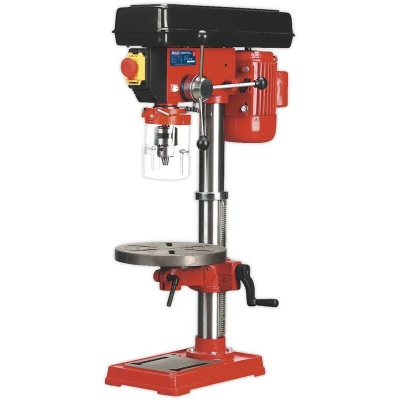

Sealey Pillar Drill Bench 12 Speed 840mm Height 370W/230V

This bench pillar drill is an exceptional tool designed for light industrial, agricultural, and woodworking applications. Offering a comprehensive range of features, it meets the Safety of Machinery (Safety) Directives 1992 and its amendments, ensuring that it adheres to strict safety standards. The drill is not only efficient but also equipped with multiple safety devices to enhance user protection.

Key Features

- Safety Devices: The drill is fitted with a no-load voltage release switch, which facilitates safety approval from insurance companies for educational establishments. This feature helps prevent accidental starting, protecting users from potential hazards during operation.

- Spindle Capabilities: Models GDM50B and above come equipped with a Morse taper spindle housing that accommodates taper shank drill bits, allowing for versatility in bit selection and application. The capacity chuck is rated at 16mm (5/8”), ensuring compatibility with a wide range of drill bits.

- Performance: The drill boasts a powerful motor with 220W of power and an input power of 370W, ensuring reliable performance for various drilling tasks. With a maximum spindle travel of 60mm and a spindle centre to column distance of 127mm, users can achieve precise drilling depths and accuracy.

- Speed and Control: This model features twelve different speed settings, ranging from 210 to 2580 rpm. The inclusion of rack and pinion feed shafts allows for adjustable preset depth control, making it ideal for repetitive tasks. The mechanical protection further ensures that access to the drive belts is restricted during operation, enhancing user safety.

Specifications

- Height: 840mm

- Column Diameter: 60mm

- Weight: 32kg

- Maximum Distance Spindle to Base: 540mm

- Maximum Distance Spindle to Table: 390mm

- Swing: 254mm

- Working Base Surface Size: 160 x 180mm

- Working Table Surface Size: Ø248mm

- Dimensions: Length 440mm x Height 185mm

- Warranty: 1 year

Optional Accessories

- Mortise attachment (Model No. MA10) is available for additional functionality.

- Keyless chuck (Model No. GDMX/KC) for added convenience.

In conclusion, this bench pillar drill is a robust and reliable tool equipped with numerous safety features and performance attributes, making it suitable for a variety of applications. Whether in an industrial setting or an educational environment, this drill offers the functionality and safety required to ensure effective and secure operation.
