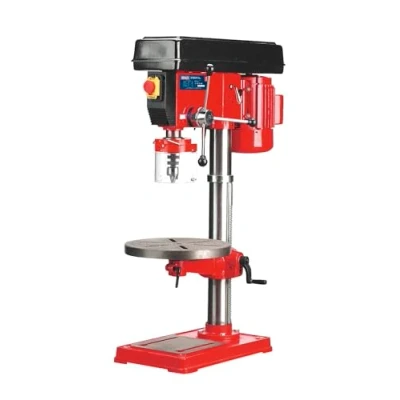

Sealey Pillar Drill Bench 16 Speed 1085mm Height 750W/230V

One of a comprehensive range of bench pillar drills designed for light industrial, agricultural, and woodworking applications, this drill meets the stringent requirements outlined in the Safety of Machinery (Safety) Directives 1992 and their amendments. Engineered for safety, the equipment is fully guarded and fitted with several essential safety features.

Safety and Usability

The drill includes a no-voltage release switch that prevents accidental restarts, ensuring a safe working environment. This feature has received approval from insurance companies for use in educational establishments, highlighting its suitability for training and instructional settings. The locking cover further enhances safety by preventing unintentional operation during maintenance or setup.

Design and Construction

This model, along with all variants from No. GDM50B and upwards, features a Morse taper spindle housing, which allows the use of taper shank drill bits for increased versatility. The drill's robust construction is complemented by a column diameter of 80mm and a total height of 1085mm, making it suitable for various drilling tasks in diverse settings.

Key Features

- Rack and pinion feed shafts come with adjustable preset depth control, ideal for repetitive drilling tasks, ensuring accuracy and efficiency.

- The drill offers multiple speed drives with a speed range of 120 to 3000 RPM, allowing users to select the appropriate speed for different materials and applications.

- Mechanical protection ensures that access to the drive belts is denied during operation, significantly reducing the risk of injury.

Specifications

- Chuck Capacity: 20mm (3/4") with an MT3 taper.

- Motor Power: 550W with an input power of 750W provides ample strength for heavy-duty operations.

- Spindle Travel: 80mm offers a good range for various drilling applications.

- Swing: 432mm allows for adequate clearance and flexibility in drilling larger pieces.

- Dimensions: The working base surface size measures 240 x 280mm, while the working table surface size is 355mm in diameter.

Additional Features

Optional mortise attachments are available for models No. GDM120B to GDM200F, enhancing the drill's functionality and making it a valuable tool for various woodworking tasks. The machine weighs approximately 80kg, indicating its sturdy build. Due to its weight, additional assistance is recommended for safe delivery and setup.

In summary, this bench pillar drill represents an ideal choice for those seeking a reliable, high-performance machine suited for a range of applications in both professional and educational settings. With its focus on safety, functionality, and versatility, it stands out as an essential tool for any workshop.
