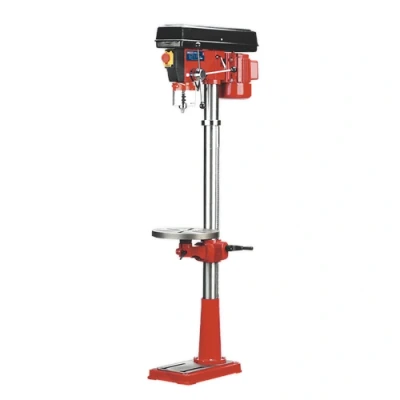

Sealey Pillar Drill Floor 16 Speed 1580mm Height 550W/230V

This floor standing drill is an excellent investment for both educational institutions and industrial workplaces, providing an optimal solution without occupying valuable bench space. With a small premium over the cost of a conventional bench drill, users can enjoy enhanced functionality and efficiency.

Key Features

This drill boasts an adjustable tilting table, which allows for precise drilling at various angles. The height adjustment is easily managed through a rack and pinion mechanism, providing additional flexibility and ease of use. The drill is designed with user safety in mind, equipped with a no-load voltage switch and a locking cover to prevent accidental starts, ensuring peace of mind while operating.

Specifications

The Model No. GDM160F offers a robust performance with the following specifications:

- Drilling Capacity (Chuck Size): 16mm (5/8")

- Spindle Nose Taper: MT2

- Swing: 330mm

- Spindle Centre to Column: 165mm

- Spindle Travel: 80mm

- Maximum Distance Spindle to Table: 790mm

- Maximum Distance Spindle to Base: 1240mm

- Number of Speeds: 16

- Speed Range: 210-3340rpm

- Motor Power: 550W (with a start power of 350W)

- Column Diameter: 70mm

- Overall Height: 1580mm

- Weight: 51kg

The drill also features a working table surface size of Ø310mm, making it suitable for various applications, while the working base surface measures 210 x 190mm. The overall base size is 420 x 250mm.

Optional accessories for this model include a mortise attachment (Model No. MA10) and a keyless pillar drill chuck (GDMX/KC - 16mm), which enhances the versatility of this floor standing drill.

Safety and Certification

All models are fully CE certified and approved, adhering to strict safety standards essential for use in educational settings and workplaces. This ensures that users can operate the drill confidently, knowing that it meets rigorous safety guidelines.

In summary, the GDM160F floor standing drill is a multifunctional tool that combines precision, safety, and ease of use. With its adjustable features and robust design, this drill is ideal for both beginners and experienced users, making it a valuable addition to any workshop or educational facility. The investment not only provides superior performance but also frees up valuable bench space for other tasks.
