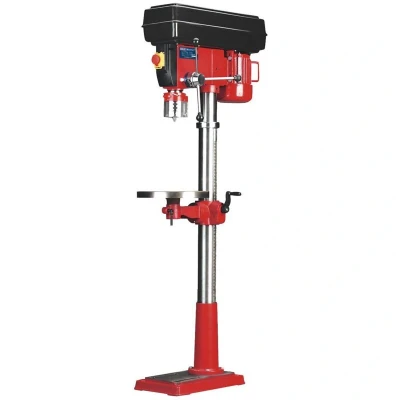

Sealey Pillar Drill Floor Variable Speed 1630mm Height 650W/230V

The GDM200F/VS Variable Speed Pillar Drill is designed for precision and versatility, making it an ideal choice for educational institutions and workshops. This robust drill boasts a variable speed model that allows for stepless control of drilling speed between a minimum and a maximum setting, enabling finer control over finish and tolerance. With its belt transmission system, the GDM200F/VS utilizes two spring-tensioned cone pulleys; the diameter of these pulleys can be adjusted using a centre idle pulley that is operated by the speed adjustment control lever.

Safety is paramount in the design of this pillar drill. It comes equipped with several essential safety features, including a no-volt release switch that ensures compliance with insurance company standards for educational use. Furthermore, a chuck guard is provided for added protection during operation, reducing the risk of accidents while drilling.

Specifications

- Model Number: GDM200F/VS

- Drilling Capacity (Chuck Size): 16mm

- Spindle Nose Taper: MT2

- Swing: 436mm

- Spindle Centre to Column: 178mm

- Spindle Travel: 80mm

- Number of Speeds: Variable

- Speed Range: 150-2300rpm

- Maximum Distance Spindle to Table: 800mm

- Maximum Distance Spindle to Base: 1230mm

- Working Table Surface Size: φ310mm

- Working Base Surface Size: 205 x 205mm

- Overall Base Size: 460 x 275mm

- Column Diameter: φ80mm

- Collar Diameter: φ60mm

- Overall Height: 1630mm

- Motor Power: 450W (Input Power: 650W)

- Nett Weight: 71kg

This pillar drill not only allows for precise drilling but also accommodates for additional accessories such as the optional mortise attachment (Model No. MA10), enhancing its functionality for various tasks.

Design and Usability

The GDM200F/VS features a sturdy construction with an overall height of 1630mm and a weight of 71kg, ensuring stability during operation. The thoughtful design provides a maximum spindle travel of 80mm, facilitating a variety of drilling applications. The working table, measuring φ310mm, offers ample space for handling workpieces, while the 178mm spindle centre to column distance helps improve user accessibility.

In conclusion, the GDM200F/VS Variable Speed Pillar Drill stands out for its combination of safety features, adjustable speed control, and robust design, making it an excellent addition for both educational settings and professional workshops. It effectively meets the needs of users seeking precision and reliability in their drilling tasks.
