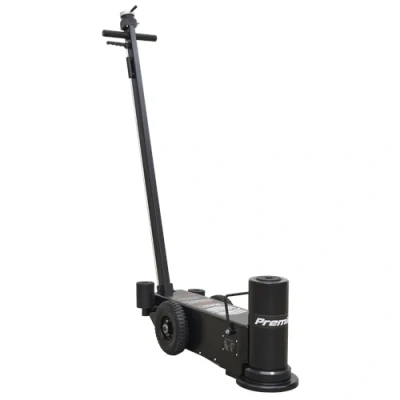

Sealey Premier Air Operated Jack 30 Tonne Single Stage High Lift

This powerful and reliable single-stage high lift jack is the ideal solution for workshop or roadside use, designed to effortlessly lift heavy plant, tractors, and commercial vehicles. Its robust construction ensures it can handle a maximum capacity of 30 tonnes, making it suitable for a range of demanding applications.

Safety Features

For enhanced safety during operation, the jack is equipped with a dead man's handle, which not only provides a secure grip but also aids in controlling the lowering speed of the load. This feature ensures that heavy items can be lowered gently and safely, minimizing the risk of accidents and injuries.

Specifications

The jack comes with two useful extensions, measuring 45mm and 100mm, which help close the gap between the saddle of the jack and the jacking point. This ensures a stable lifting operation, as users can easily adapt the jack to various vehicle heights.

- Minimum Saddle Height: 360mm

- Maximum Height (inc. Extension): 772mm

- Piston Stroke: 267mm

- Overall Width: 295mm

- Chassis Length: 842mm

- Width without Wheels: 195mm

- Maximum Length: 2222mm

The working pressure ranges from 116 to 174 psi, allowing for efficient hydraulic performance. For serious lifting tasks, it is essential to note that this jack is heavy, with a net weight of 126kg, so extra assistance should be available to facilitate safe handling.

<a class='cat-link' href='https://bigshopper.co.uk/brand/air/'>Air</a> Consumption

The jack operates with an air consumption of 11.5 cfm, making it compatible with most compressed air setups. Its efficient design enables users to lift heavy loads quickly without sacrificing control or safety.

Dimensions

The compact dimensions of the jack make it a convenient addition to any workshop. Its overall length is 385mm, and it stands at a height of 530mm when not extended, making it easy to store when not in use.

Warranty

To provide users with peace of mind, the jack comes with a 1-year warranty, ensuring any potential concerns can be addressed promptly.

In summary, this high lift jack is an essential tool for anyone requiring a reliable and powerful lifting solution for heavy machinery. Its thoughtful design prioritizes safety while delivering exceptional lifting power, making it a smart choice for both professional and personal use. Whether in a workshop or on the side of the road, this jack is engineered to perform efficiently and safely, adapting to the various demands of lifting heavy vehicles.
