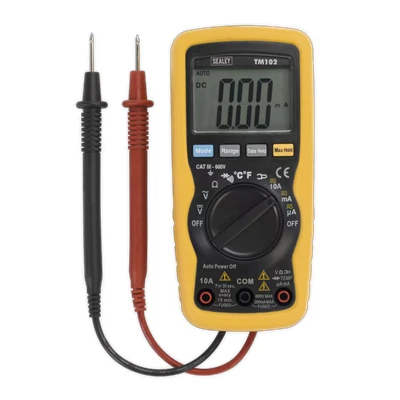

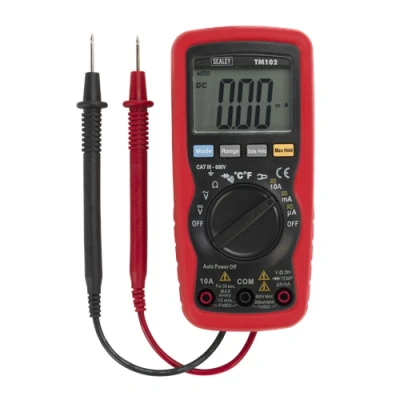

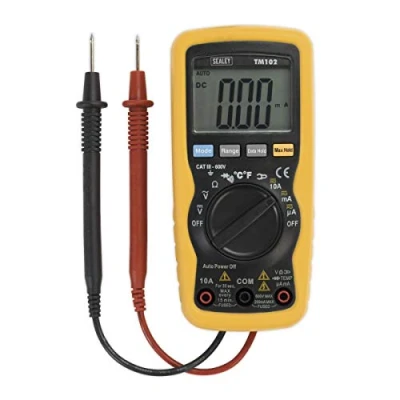

Sealey Professional Auto Ranging Digital Multimeter 8 Function

The high precision auto-ranging multimeter is an essential tool designed for professionals and DIY enthusiasts alike, ensuring accurate measurements across a variety of applications. This multimeter conforms to the stringent EN 61010-1 CATIII 600V safety requirements, making it suitable for use in measurement, control, and laboratory environments.

Features and Specifications

This multimeter is equipped with a wide range of functionalities, including:

- Voltage Measurements: Capable of measuring both AC and DC voltage, with accuracy ratings varying from 200 mV to 1000 V. The accuracy for AC voltage ranges from ±1.2% to ±2%, while DC voltage boasts an accuracy of ±0.5% to ±1.5% depending on the range.

- Current Measurements: The device provides readings for both AC and DC currents, covering ranges from 200 µA to 10 A, with an accuracy range from ±1% to ±3%.

- Resistance and Diode Testing: The multimeter can measure resistance from 0-200 Ω to 20 MΩ with accuracies between ±1% and ±2%. It also features a diode test function for basic electronic repair tasks.

- Continuity Buzzer: This feature enhances usability by providing audible signals for continuity testing, ensuring quick and reliable checks.

- Temperature Measurement: Users can measure temperatures ranging from -50ºC to 1000ºC (or -58 to 1832ºF) with an accuracy of ±3%.

Design and Usability

The multimeter is designed with user-friendliness in mind. It features a large display that presents measurements clearly, and the double-moulded housing is complemented by a soft grip case ensuring comfort during use. Storage solutions for probes and leads are cleverly integrated into the design, accompanied by an integral upright stand that allows for hands-free operation while on the workbench.

For added convenience, this model includes a maximum/data hold function and an auto-power-off feature to enhance battery life. The device is lightweight at 255g and comes with a zipped pouch equipped with a carrying strap, making it easy to take on the go.

Technical Details

- Model Number: TM102

- Dimensions: 150 mm (L) x 70 mm (W) x 48 mm (D)

- Weight: 255 g

- Conformity: Complies with EN 61010-1 standards

With its array of measurement capabilities and robust design, this high precision auto-ranging multimeter is an invaluable tool for anyone requiring accurate electrical measurements. Whether for professional or home use, it combines functionality, safety, and ease of use in a compact format.
