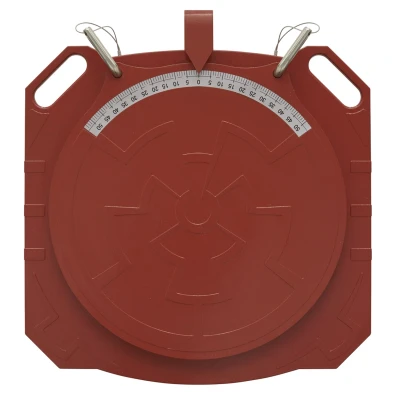

Sealey Steering Turntables Pair

The Sealey Steering Turntables are an essential tool for automotive professionals seeking precision in vehicle alignment and steering angle measurements. Designed to be used in conjunction with the Model No. GA42 Caster Kingpin Gauge Set, these turntables provide an efficient and accurate solution for measuring critical adjustments.

Key Features

- Accurate Measurements: The turntables facilitate accurate castor and kingpin alignment, allowing technicians to ensure that vehicles are properly aligned for optimal performance. They also measure toe-in/out and full lock angles, making them versatile for various alignment tasks.

- High Capacity and Stability: With a maximum loading capacity of 4000kg per pair, these turntables are robust and suitable for a wide range of vehicles. The design incorporates locking pins that prevent rotation of the table while driving the vehicle onto it, ensuring precise angular measurements during the alignment process.

- Angular Range: The turntables can measure rotation of up to 55º in either direction, providing technicians with significant flexibility in their measurements and adjustments.

Technical Specifications

- Model Number: GA44

- Maximum Capacity: 4 tonnes per pair (2 tonnes each)

- Nett Weight: 11kg

- Range: ±55º

- Table Dimensions: Diameter of 400mm, Height of 50mm

- Movement Range: 62mm front-to-back, 55mm side-to-side

- Overall Dimensions: Length of 435mm, Height of 140mm

- Total Weight: 11.6kg

- Warranty: 1 year

The robust construction of the Sealey Steering Turntables ensures durability and longevity, making them a valuable addition to any workshop or garage. Their user-friendly design allows for quick setup and operation, thus enhancing workflow efficiency.

In conclusion, the Sealey Steering Turntables are an indispensable tool for mechanics and automotive specialists who require precise monitoring and adjustment of vehicle alignment settings. With their high capacity, stability features, and wide measurement range, they promise to deliver reliable performance and accuracy, ensuring vehicles are aligned and functioning optimally.
