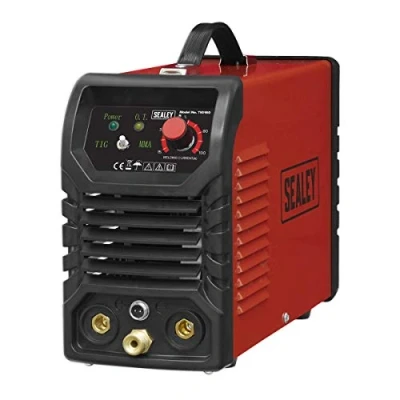

Sealey TIG/MMA Inverter Welder 160A 230V

The Fan-Cooled DC Power Supply is a high-performance solution designed for TIG and arc welding applications, delivering reliable power with impressive features for both professional and DIY users.

Design and Build Quality

Constructed from pressed steel, the outer case is coated with a durable powder finish that provides additional corrosion resistance, making this welder perfect for use in various environments. Its robust design ensures longevity, while the compact dimensions facilitate easy mobility. Weighing in at just 5.35 kg (approximately 11.8 lbs), this welder is highly portable, allowing technicians to effortlessly transport it to job sites.

Welding Functionality

This power supply supports both TIG and MMA/ARC welding, with a power output range of 20-160A, making it versatile for different welding tasks. The duty cycle at 160A is effectively 20%, ensuring optimal performance during operation. For 60% of the time, it operates at 90A, and at 100%, it can run continuously at 70A. Additionally, the unit is equipped with IGBT inverter technology that enhances efficiency and stability during the welding process.

User-Friendly Features

@@@fHCkWzp+3Xj4HLUHEw4XUou2qzBpcVeI@@@ standout feature is the quick-release switch on the torch, enabling precise gas control to reduce consumption and enhance weld quality. The unit is designed with user comfort in mind, featuring hot start and anti-stick functions that allow for easier arc ignition. Furthermore, the forced air cooling system and thermal cut-out protection prevent overheating during extended usage, ensuring safe operation.

Accessibility and Accessories

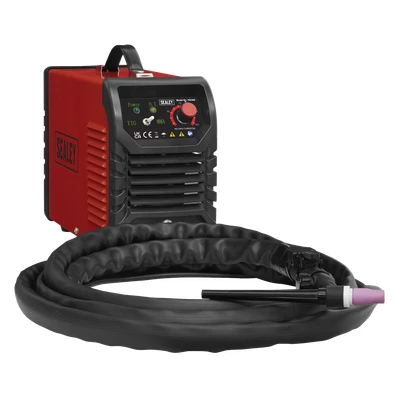

This power supply is suitable for arc welding via the lift-start method, providing additional control for cleaner welds. Along with the main unit, it comes supplied with essential MMA/TIG accessories that make it a ready-to-use solution for immediate welding needs. For added convenience, an optional MMA electrode holder is also available (Model No. MMA01).

Technical Specifications

- Nett Weight: 8.38 kg

- Absorbed Power: 5.1 kW

- Supply Voltage: 230V

- Protection Degree: IP21S

- Electrode Capacity: Ø1.6-4 mm

Overall, the Fan-Cooled DC Power Supply for TIG and arc welding is ideal for mobile technicians seeking a robust, efficient, and portable welding solution that meets both professional demands and hobbyist expectations. Its combination of advanced features and ease of use positions it as an essential tool for any welder.
