Sealey Timing Tool & Fuel Injection Pump Kit Ford, PSA, LDV

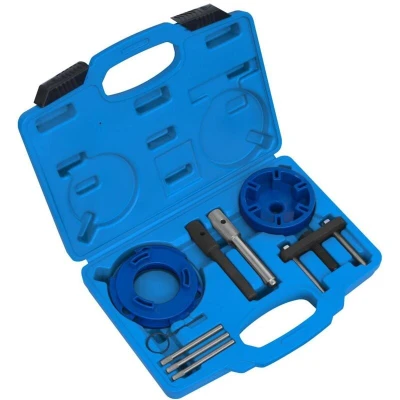

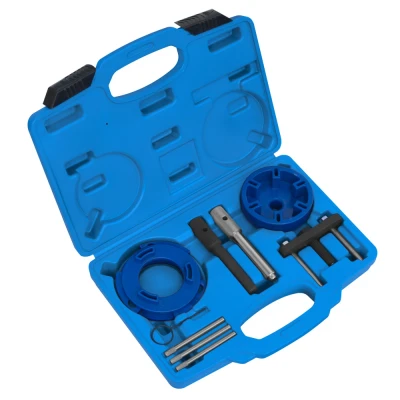

The comprehensive timing tool kit is specifically designed for 2.0D, 2.2D, and 2.4D Duratorq chain-driven diesel engines found in various vehicles from Citroën, Fiat, Ford, Jaguar, Land Rover, LDV, and Peugeot. This versatile kit ensures that both early and later engine models can be effectively serviced and maintained, making it an essential addition to any automotive professional's toolkit or enthusiast's garage.

Key Features

- Sprocket Retaining Plates: The kit includes specially designed sprocket retaining plates that cater to both the early and later engine models. This feature ensures secure locking of the engine's timing components during maintenance, reducing the risk of timing errors and potential engine damage.

- Access Cover Removal Tools: To facilitate the easy removal and installation of the injection pump, the kit is equipped with access cover removal tools. This allows for straightforward servicing of the injection system, enabling users to perform repairs or replacements with confidence.

- Storage Case: All tools are supplied in a robust storage case, offering convenient organization and portability. The storage solution is designed to keep all components secure and easily accessible, saving time and effort when working on the engine.

- Warning Tag: The kit comes with a warning tag, providing essential safety information for users to ensure proper handling of the tools and components. This tag reinforces the importance of following safety measures during engine maintenance.

Specifications

The timing tool kit is compatible with a wide range of vehicles and engine specifications, including but not limited to:

- Citroën Models: Relay/Jumper III (2006-2013)

- Fiat Models: Ducato (2006-2011)

- Ford Models: Mondeo (2000-2007), Transit (2000-2014)

- Jaguar Models: X-Type (2003-2010)

- Land Rover Models: Defender TD4 (2006-2011)

- LDV Models: Convoy (2002-2006)

- Peugeot Models: Boxer III (2006-2012)

Engine codes supported include:

- 2.0D variants such as ABFA, D3FA, and F3FA.

- 2.2D TDCi/ECOnetic models including BG, CYFA, and P8FA.

- 2.2D HDi/JTD: P22DTE (4HM, 4HU, 4HV).

- 2.4D Di/TDCi with codes like DOFA, D2FA, and FXFA.

- 2.4D TD/TDi represented by the ZSD 424 code.

Product Dimensions and Weight

The kit measures 65mm in length and stands at a height of 220mm, weighing a manageable 1.4kg, making it easy to handle and store.

Warranty

The timing tool kit comes with a one-year warranty, ensuring confidence in its durability and effectiveness for all your engine timing requirements.
