Sealey Trammel Gauge Telescopic

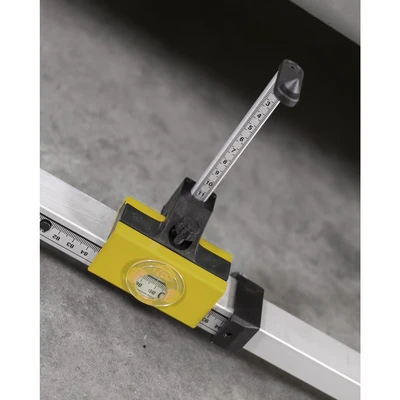

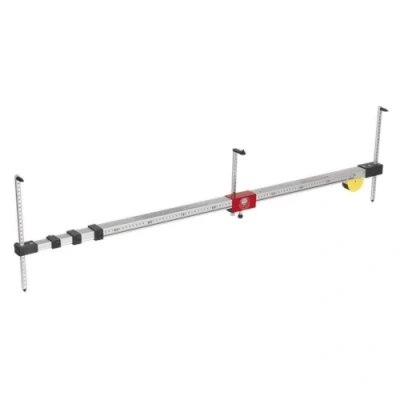

The Sealey RE50 is an aluminium telescopic trammel gauge designed as a four-section measuring device for obtaining precise dimensional data, particularly for chassis alignment. It features an integral measuring tape that provides a fast metric read-out between the end probes and enables mid-probe readings through markings on the exterior of the pole. The gauge includes three fully adjustable probes, offering versatile measurement options in a compact, lightweight form factor suitable for alignment tasks that require accuracy across a range of distances.

Technical specifications

• Material: Aluminium
• Construction: 4-sections
• Model No.: RE50
• Maximum Distance - End Probes: 3000 mm
• Maximum Distance - Mid/End Probes: 730 mm
• Nett Weight: 1.50 kg
