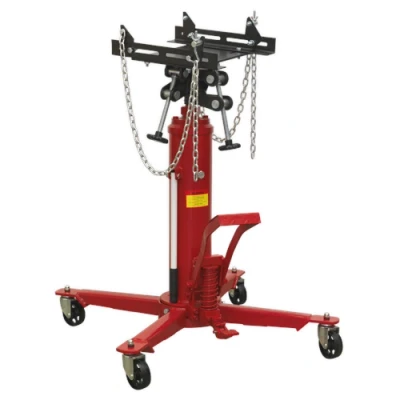

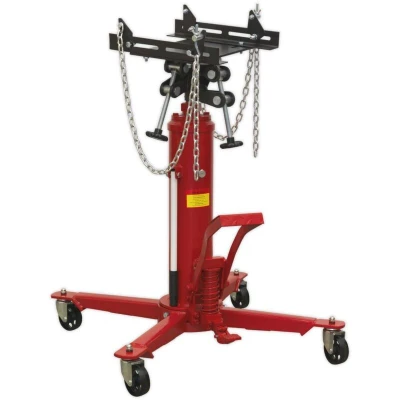

Sealey Transmission Jack 0.8tonne Vertical Telescopic

The Telescopic 2-Stage Lifting Jack is engineered for reduced clearance lifts, making it an essential tool for mechanics and technicians requiring efficiency and precision during vehicle maintenance tasks. With its innovative design, this lifting jack offers an impressive lifting capacity of 800kg, accommodating a variety of vehicles and equipment.

Efficient Operation

This lifting jack features a high-speed lift mechanism activated simply by lifting the piston, significantly reducing the time required to achieve the desired height. The foot pedal operation allows users to keep their hands free, enabling better alignment of the saddle with the transmission during use. The spring-loaded dead man's safety release control aids in minimizing the risks of inadvertent lowering, providing an additional layer of safety during operation.

Design and Features

The design incorporates twin-axis saddle adjustors, which allow for angled positioning of the gearbox support in any direction, enhancing versatility during use. The adjustable saddle can be set between a minimum height of 960mm and a maximum height of 1920mm, making it suitable for various lifting requirements.

- Minimum Saddle Height: 960mm

- Maximum Saddle Height: 1920mm

- Base Size: 1046 x 1046mm

- Saddle Tilt (Forward): 15°

- Saddle Tilt (Backward): 40°

- Weight: 87kg

The lifting jack is fitted with four heavy-duty castors equipped with non-marking nylon wheels, ensuring easy manoeuvrability across workshop floors without causing damage. The sturdy base structure guarantees stability, while the hard chrome-plated piston rod contributes to the durability of the tool.

Dimensions and Specifications

The overall dimensions of the jack are 400mm in length and 930mm in height, with a nett weight of 87kg, making it robust yet manageable for various users. The thoughtful incorporation of features ensures that this lifting jack provides both safety and convenience, making it an invaluable asset in any automotive setting.

Safety Considerations

Due to its weight, it is advised that extra assistance be present at the delivery point to ensure the safe handling of the lifting jack. The robust design minimizes the risk of accidental lowering, prioritizing operator safety at all times.

In summary, the Telescopic 2-Stage Lifting Jack is a high-performance tool that combines efficiency, safety, and ease of use. With its versatile adjustment capabilities and solid construction, it is ideal for those in need of reliable lifting equipment in the automotive service industry.
