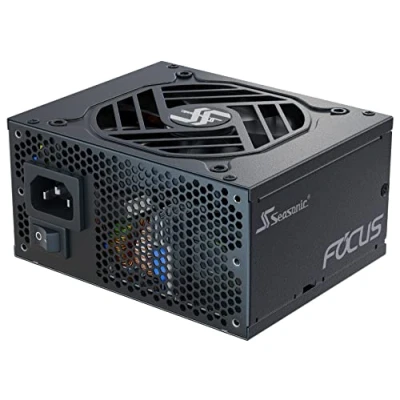

Seasonic Power supply 750 W FOCUS SGX Modular (80+Gold)

Seasonic Focus Sgx 80+gold Modular Power Supply 750w. Seasonic FOCUS SGX 750W 80+ Gold SFX PSU offers compact power with a small footprint, ideal for various PC builds. It includes an SFX-to-ATX adapter for flexibility. Featuring Seasonic´s S3FC hybrid fan control, it ensures optimal cooling and silent operation, with a Fluid Dynamic Bearing fan for enhanced lifespan and reduced noise. Fully modular and 80 Plus Gold certified, it delivers stable, efficient power. EU Plug.The new line of Seasonic´s FOCUS SGX is versatile in its application and powerful with a small footprint.It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H).The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case.The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.Features:- Standard Sfx Size:The 2021 Version Of The Focus Sgx Measures At 125 And 100 Mm In Length And Width.This Super-Compact Size Allows It To Fit Into Various Sized Computer Cases.- Smart And Silent Fan Control [S3fc]:The Industry´S First, Seasonic Patented, Advanced Three-Phased Thermal Control Achieves Optimal Between Silence And Cooling.This Hybrid Silent Fan Control Functions In Three Operational Stages:Fanless Mode, Silent Mode, And Cooling Mode.Benefits:- Reduced Noise Without Increase In Temperature.- Extended Fan Life Due To The Reduced Number Of Fan Rotations.- Optimized Heat Dissipation At All Times.- Unsurpassed Silent Performance In Fanless Mode.Fluid Dynamic Fan Bearing:- High Performance Fluid Dynamic Bearing (Fdb) Fans Are Designed To Take Advantage Of The Impact Absorbance Effects Of Oil.They Are Extremely Reliable And Generate Considerably Less Operating Noise And Heat Than Ball Bearing Fans.The Lubrication Of The Bearing Surface Reduces Friction And Vibration And Therefore Lowers Overall Power Consumption.Due To The Effortless, Quieter Rotations And Its Robust Construction, This Reliable Fan Technology Also Greatly Increases The Lifespan Of The Fan.How It Works:- When The Fan Shaft Rotates, High Pressure Oil Drifts Along The Grooves Of The Bearing Sleeve To Generate A Thin Layer Of Lubrication Between The Bearing Faces.As The Speed Increases, So Does Dynamic Oil Pressure And The Shaft Is Lifted From The Bearing To Create Smooth, Effortless Rotations.The Herringbone Shape Of The Groves Helps To Efficiently Channel The Lubricant And Avert Leakage.- 80 Plus® Gold Certified.- Compact Sfx Size.- 125 (L) X 100 (W) X 63.5 (H) Mm.- Tight Voltage Regulation.- Cable-Free Connection Design.- S3fc.- Fanless Until 30 % Load.- Sfx To Atx Expandability.- Gold Plated Connectors.Specifications:Technical Specifications.- 80plus®:Gold.- Cybenetics Efficiency Level:Tba.- Cybenetics Noise Level:Tba.- Form Factor:Intel Sfx 12 V / Atx 12 V.- Dimensions:100 Mm (L) X 125 Mm (W) X 63.5 Mm (H) Fan Information::- Fan Size:92 Mm.- Fan Control:Premium Hybrid Fan Control.- Fan Bearing:Fluid Dynamic Bearing.- Life Expectancy:50,000 Hours At 40 °C, 15 %.- 65 % Rh Cable Information:- Modularity:Fully Modular Electrical.Features:- Operating Temperature:0.- 50 °C (Derating From 100 % To 80 % From 40 °C To 50 °C).- Mtbf 25 °C, Excl.Fan:100,000 Hours.- Ac Input:Full Range.- Protection:Opp, Ovp, Uvp, Ocp, Otp, Scp Safety And Environmental:- Safety And Emc:Ctuvus, Tuv, Cb, Ccc, Bsmi, Eac, Ce.- Environmental Compliance:Energy Star, Rohs, Weee, Erp Lot 6, Reach Power Output:Ac Input:- Voltage:100 V.- 240 V.- Current:10.- 5 A.- Frequency:50 Hz.- 60 Hz Dc Output:- Rail:+3.3 V, +5 V, +12 V, -12 V, +5 Vsb Maximum.Power:- 20 A, 20 A, 62 A, 0.3 A, 3 A.- 100 W, 744 W, 3.6 W, 15 W.- Total Continuous.Power:750 W. tradeinn Techinn

Seasonic Focus SGX-750 (2021), 750 W, 100 - 240 V, 50/60 Hz, 10 A, 5 A, 100 W Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 600 mm Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold Cooling type: Active, Fan diameter: 9.2 cm. Width: 125 mm, Depth: 100 mm, Height: 63.5 mm
