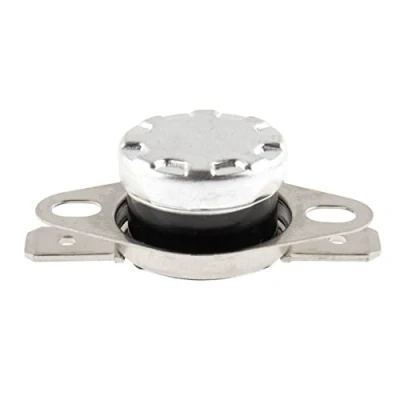

SeKi Temperature Switch 45 250V 10A; NC = Normally Closed / "Opener", Limiter Thermal Switch, Protection Controller

“Opener” temperature switch opens a circuit if the nominal temperature is exceeded. When the temperature goes down due to cooling, the switch closes automatically. Plastic housing can withstand a maximum of 180 °C Our SeKi temperature switch opens at 45°C ± 5°C. The reset temperature is 30 ± 8°C Maximum load capacity: 250 V 10 A AC Contact resistance: ≤ 50 mΩ Dimensions: 32 x 19 x 12 mm. Hole spacing: 25 mm diameter = 3.4 mm / connection: 6.3 mm x 0.8 mm (flat connector or soldering), Weight: 0.0220462262 pounds, Manufacturer: Matrix Handels GmbH
