Sievert PRMS3524 Gas Torch Kits and Accessories

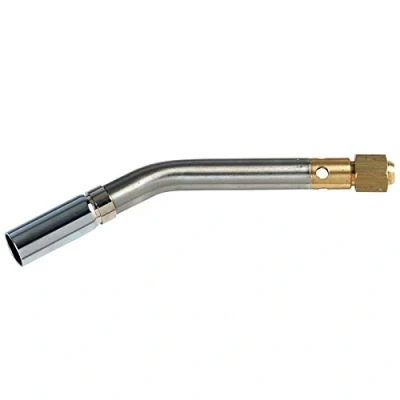

This Sievert cyclone burner is a compact handheld torch designed for soldering and brazing tasks on piping. It features a 19 mm head diameter and a swirling wrap-around flame pattern that concentrates heat for efficient work on pipes up to 50 mm in diameter with soldering, and up to 18 mm for brazing. The burner operates at a rated power of 3.1 kW and a working pressure of 2 bar, consuming about 240 g of gas per hour. It is designed for direct connection to compatible handles via a 3/8

Features

• Swirling wrap-around flame for soldering up to 50 mm
• 19 mm head; 3/8" RH connection
• 3.1 kW power; 2 bar working pressure
• Includes neck tube for direct connection to handles
• Compatible with PRMS3486 and PRMS3488 handles
• Gas consumption 240 g/hr

Technical specifications

• Power: 3.1 kW
• Head diameter: 19 mm
• Connection: 3/8" RH
• Working pressure: 2 bar
• Gas consumption: 240 g/hr
• Max temperatures: Brazing up to 720°C (18 mm), Soft soldering up to 400°C (50 mm)
