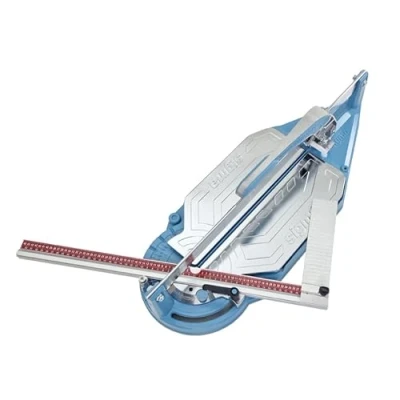

Sigma tile cutter machine push handle 4BN cutting lenght 62 cm series 4 nex

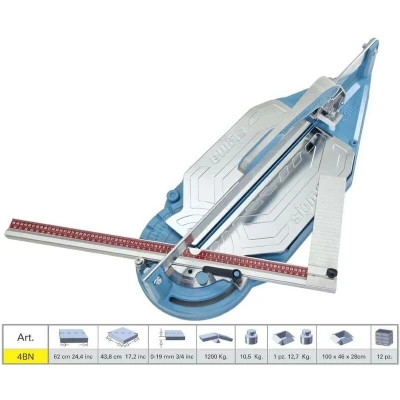

General description Pushing incision is easy and deep with minimum effort, making this tile cutter perfect for rough, thick, and large tiles. It features an ergonomic handle designed specifically for pushing incision. Technical specifications Maximum cutting length: 62 cm Diagonal cutting length: 43.8 cm Maximum cutting thickness: 19 mm Breaker strength: 1200 kg Weight: 10.5 kg Wheels diameter: 16 mm with internal bearing Other information The 16 mm diameter scoring wheel is clearly visible on the operator side and equipped with double suspension for cushioned scoring of structured tiles. The scoring wheel rotates on a roller bearing, guided laterally by an anti-friction metal shell inserted in a CNC milled holder to avoid friction and lateral clearance. 120 mm wide splitting foot with interchangeable anti-mark protection. The sliding carriage is clearance-free, thanks to 3 double-row ball bearings that guarantee precision over time without the need for maintenance. There is an
