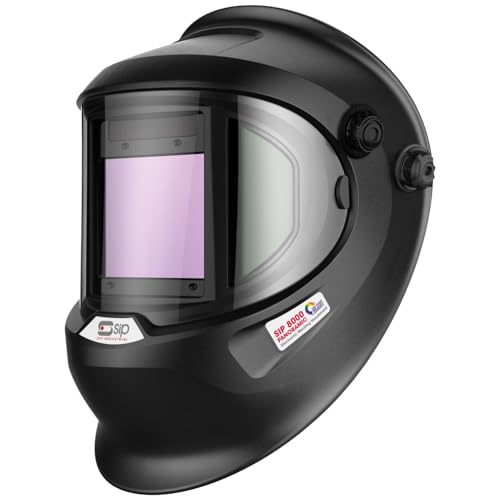

SIP Meteor 8000 Panoramic Electronic Headshield

The SIP METEOR 8000 Panoramic Electronic Headshield uses True Colour HD LCD lens technology and panoramic windows to enhance detail, clarity, and peripheral vision during welding tasks. It features a 100 mm by 83 mm active viewing area, a wide shade range (9–13 DIN for arc/MIG/TIG; 4 DIN for grinding; 5–9 DIN for plasma), and a rapid light-to-dark response of 1/10,000 second. Powered by a solar panel with a CR2450 lithium battery, it includes an adjustable padded headband, a side-mounted control knob for sensitivity, and a test button to verify shielding functions. A low shield power warning light provides an at-a-glance indication of power status, and panoramic side windows improve peripheral awareness across applications for home, trade, and professional welding environments.

Features

• True Colour HD LCD lens technology for enhanced detail
• Panoramic 5 shade side windows improve peripheral vision
• Viewing area: 100 mm x 83 mm for wide visibility
• Fast 1/10,000 s light-to-dark response with 4 arc sensors
• Side-mounted control for adjustable sensitivity and a test button

Technical specifications

• Welding shade: 9–13 DIN; grinding shade: 4 DIN; plasma shade: 5–9 DIN
• Viewing area: 100 mm x 83 mm; filter size: 133 x 144 mm
• Power: solar panel with CR2450 lithium battery; low shield power and low battery warning lights
• Dimensions: height 290 mm, width 270 mm, depth 390 mm; weight 0.65 kg
• Protection range: suitable for -20°C to 65°C ambient temperature
• Other: lightweight, compact design; adjustable padded headband; testing function to check shielding integrity

Includes a test button to check electronic shielding functions and warning lights for low shield power and low battery.
