Socket Polarity Tester with RCD Test Function

The Faithfull Socket Tester is an indispensable tool for ensuring electrical safety within domestic and commercial settings. This mains safety tester is specifically designed to assess socket wiring and Residual Current Devices (RCDs), allowing users to determine whether a socket is wired correctly or incorrectly.

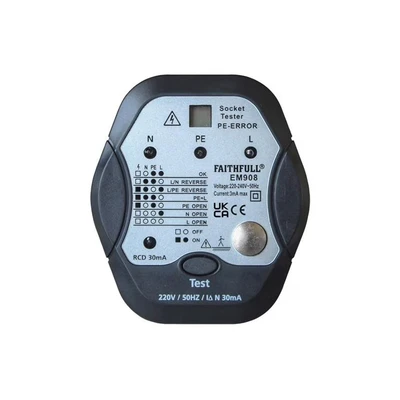

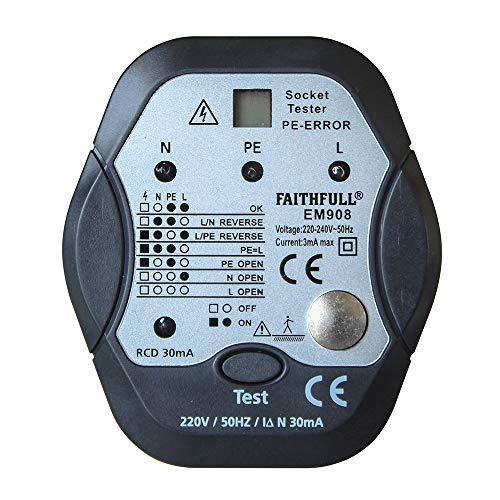

The device features 5 combined indicators, which, in conjunction with the provided coding table, give a clear and comprehensive status of the socket's wiring condition. Notably, the Faithfull Socket Tester provides a true ground error indication via an LCD display, alerting users to the presence of dangerous contact voltage at the protective earth (PE). This feature is crucial for identifying potentially hazardous situations and ensuring safe operation.

Among its standout attributes, the tester employs 3 neon indicators for Line (L), Neutral (N), and Protective Earth (PE), allowing for rapid detection of socket wiring correctness. This user-friendly design simplifies the process of electrical testing, making it accessible even for those with limited technical knowledge.

Additionally, the Faithfull Socket Tester is equipped with an integrated RCD tester. This function is specific to testing the operation of RCDs rated at 30mA or less, ensuring they trip effectively when required. This is a critical safety feature, as RCDs are essential for preventing electrical shocks and protecting against electrical faults.

Key Specifications

- Socket Type: UK 240V 3-Pin

- Nominal Voltage: 220V ±10%

- Frequency Range: 50-60Hz

- Measurement Category: CATIII, 300V

- RCD Test Time: 60-300ms

- Contact Voltage Threshold: <35V AC against ground, depending on coupling to earth

- RCD Test Current: 30mA ±15%

- Dimensions: 77 x 67 x 66 mm

- Weight: Approximately 70g

The Faithfull Socket Tester is built to operate within a frequency range of 50-60Hz and is suitable for use in ambient temperatures between 0°C and 40°C. Its lightweight design, weighing just around 70g (approximately 0.15 pounds), makes it highly portable and easy to handle, ensuring that it can be conveniently used in various settings, whether at home or on-site.

In conclusion, with its robust features and user-friendly design, the Faithfull Socket Tester represents a vital piece of equipment for anyone working with electrical systems. It not only helps identify socket wiring issues but also tests the functionality of RCDs, promoting safety and compliance with electrical standards.
