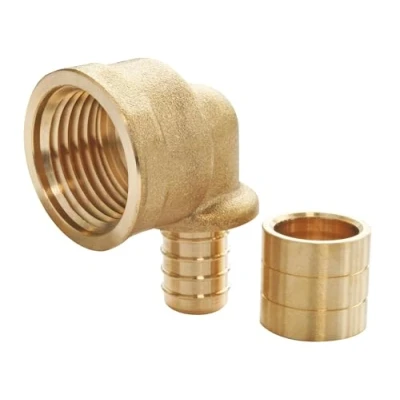

Somatherm 2307 16 12 Fixed Female Elbow 3/8, Grey

Quick and easy connection of the PEX pipe with a sliding clamp. Diameter connection for pipes 16. As a deposit of this fitting, the NF meets 545. Compatible with PEX pipe diameter 16. Compatible with a push tool Before installation, it is important to clean the pipes. Control the water pressure: 4 bar max, but also plan the installation of a pressure reducing valve in the main flow head. This device is designed to work with fresh water; for hard water, provides water treatment. The installation of such a connection must be carried out without mechanical action (expansion or missing support required). Adjust the tightening torque to avoid damage to the taps 30 N.mètre max. For sealing the fitting union nut, in preferred rubber seals or fibre. Fully tightening the fixing nut connection using pliers or a wrench (tighten moderately). The ports must remain accessible. The installation and use of this connection must comply with the rules of art, DTU and regulations., Weight: 1.10231131E-4 Pounds, Manufacturer: Somatherm
