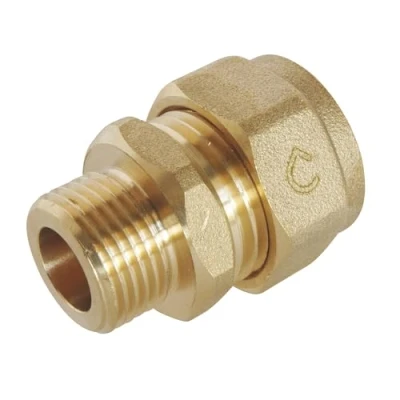

Somatherm 2716 16 12 Male Connector 12/17 per 13 x 16, Grey

Quick and easy connection PEX pipes. No need for special tools, collected in two fairly flat. Simply insert the nut on the tube to fit the nipple into the tube and the nut on the fitting screw. For connection pipe diameter 16. This connection is removable. Diameter tube 16 for compatible Before installation, it is important to clean the pipes. Control the water pressure: 4 bar max, but also plan the installation of a pressure reducing valve in the main flow head. This device is designed to work with fresh water; for hard water, provides water treatment. The installation of such a connection must be carried out without mechanical action (expansion or lack of support required). The connection must not be subjected to mechanical stress; test the alignment of the pipes. Adjust the tightening torque to avoid damage to the taps 30 N.mètre max. To perform a flat seal in coutchouc or fibre the tightness of the union nut. Raffia use with common pasta is prohibited. Fully tightening the fixing nut connection using pliers or a wrench (tighten moderately). The ports must remain accessible., Weight: 1.4550509292E-4 pounds, Manufacturer: Somatherm
