Souber DBB 5 Minute Morticer JIG1 Door Lock Mortiser Kit 19mm 22mm 25mm

ManoMano

This very precise drilling jig is designed specifically to guide the drilling bit to cut mortices for door locks and their faceplates. It is quick and simple to set up, self centring and locks onto the door edge securely. It really is a simple process: mark the lock length on to the door, select the width of mortice cutter that suits your lock, set the depth collar, pass the drill shaft through the jig’s guide bush, lock the jig to the door and using power from your drill, drive the carbide tipped mortice cutter into the door moving up and down; repeat process for the faceplate. This produces a very clean smooth cut and is one of the fastest most accurate ways to cut a mortice. You can also use it to cut hinges. Power drill with a 13mm chuck running at speeds 2,000 - 3,000 rpm is recommended. Works with any doors from 30mm - 85mm in thickness. Supplied with 3 special carbide tipped cutters: 19.0, 22.2 and 25.4mm covering the most popular lock widths, a shaft for lock up to 100mm in

Amazon

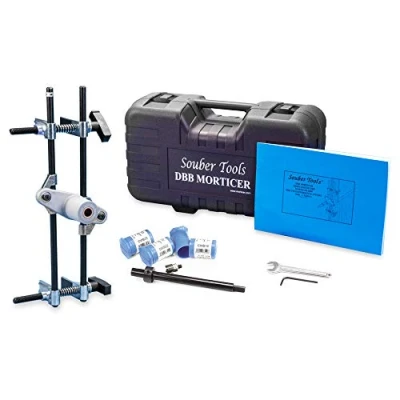

Quick Simple & Easy to set up Multiple Uses Cuts lock recess aswell as body All in Handy Carry Case, Weight: 11.0 Pounds, Manufacturer: Souber
