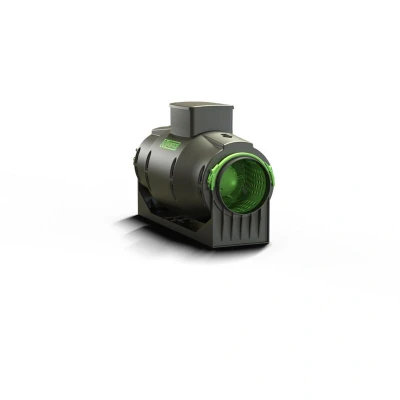

Sound insulated inline fan Lineo 100 Quiet es
Featured
|
£ 582.15 |
To Shop
|
Description
ManoMano
Dimensions and technical details 220-240 V ~ 50/60 Hz 0-10 V interface Housing colour: black Housing material: polypropylene Nominal size: 100 mm Speed levels: 1 Wattage: 23 W Current consumption: 0.26 A Revolutions per minute: 2510 Airflow rate: 300 m³/h Sound pressure level Lp-3m: 27.4 dB(A) Total pressure Pmax: 243.2 Pa Max. temperature of transported air: +60°C Protection class: IP45 Insulation class: II Weight: 3.6 kg Thermal overload protection Includes mounting bracket Optional speed controller sold separately Mounting position: any position Fan unit can be removed quickly for cleaning and maintenance Classification of fire E-d2 according to European Standard EN 13501-1 Dimensions in mm A B C Ø D E F G H L Ø M N Lineo 100 Quiet ES 210 294.5 639 97 130 235 135 120 67.5 5.5 320
Compare webshops (1)
Description
(1)
Dimensions and technical details 220-240 V ~ 50/60 Hz 0-10 V interface Housing colour: black Housing material: polypropylene Nominal size: 100 mm Speed levels: 1 Wattage: 23 W Current consumption: 0.26 A Revolutions per minute: 2510 Airflow rate: 300 m³/h Sound pressure level Lp-3m: 27.4 dB(A) Total pressure Pmax: 243.2 Pa Max. temperature of transported air: +60°C Protection class: IP45 Insulation class: II Weight: 3.6 kg Thermal overload protection Includes mounting bracket Optional speed controller sold separately Mounting position: any position Fan unit can be removed quickly for cleaning and maintenance Classification of fire E-d2 according to European Standard EN 13501-1 Dimensions in mm A B C Ø D E F G H L Ø M N Lineo 100 Quiet ES 210 294.5 639 97 130 235 135 120 67.5 5.5 320
