Sourcingmap 10 Pcs DP3T 2P3T 3 Position Mini Horizontal Slide Switch 8 Pin PCB SK23D07 VG4

Name: Sourcingmap 10 Pcs DP3T 2P3T 3 Position Mini Horizontal Slide Switch 8 Pin PCB SK23D07 VG4
Brand: sourcing map
SKU: b52891714997172bbabc5acb5daf86ef

1/1

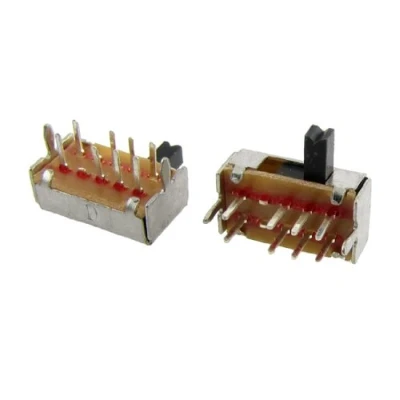

Image of Sourcingmap 10 Pcs DP3T 2P3T 3 Position Mini Horizontal Slide Switch 8 Pin PCB SK23D07 VG4

Amazon

Prices from

5.89

Description

Amazon Product Name : Slide Switch;Model : SK-23D07VG4;Type : 2P3T;Terminal Quantity : 8 Working Power : 0.5A 50V DC;Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC;Withstand Voltage : AC 500V for 1 min Terminal Length : 4mm/ 0.12";Pin Pitch : 2mm / 0.079" & 4mm / 0.157";Main Body Size(not include Pins & Knob) : 13 x 7 x 4mm/ 0.51" x 0.27" x 0.16"(L*W*H) Switch Total Size : 13 x 11 x 8mm/ 0.51" x 0.43" x 0.3"(L*W*H);Knob Size : 2 x 2 x 4mm/ 0.08" x 0.08" x 0.16"(L*W*H);Material(External) : Plastic, Metal Main Color : Silver Tone, Black;Weight : 10g;Package Content : 10 x Slide Switch

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 5.89

£ 6.49

Description (1)

Product Name : Slide Switch;Model : SK-23D07VG4;Type : 2P3T;Terminal Quantity : 8 Working Power : 0.5A 50V DC;Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC;Withstand Voltage : AC 500V for 1 min Terminal Length : 4mm/ 0.12";Pin Pitch : 2mm / 0.079" & 4mm / 0.157";Main Body Size(not include Pins & Knob) : 13 x 7 x 4mm/ 0.51" x 0.27" x 0.16"(L*W*H) Switch Total Size : 13 x 11 x 8mm/ 0.51" x 0.43" x 0.3"(L*W*H);Knob Size : 2 x 2 x 4mm/ 0.08" x 0.08" x 0.16"(L*W*H);Material(External) : Plastic, Metal Main Color : Silver Tone, Black;Weight : 10g;Package Content : 10 x Slide Switch
