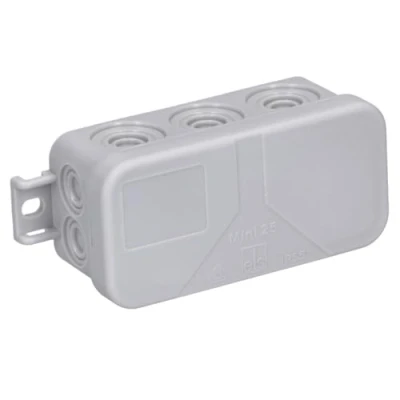

Spelsberg Mini 25L Polyethylene, Polypropylene (PP) Electrical Junction Box Boxes (Grey, 89mm, 43mm, 37mm)

PROTECTION CLASS: IP55-rated junction box provides robust protection against dust and water jets, suitable for standard indoor installations with VDE certification (DIN EN 60670-1/-22). ELECTRICAL SPECIFICATIONS: Rated insulation voltage of 400V AC with maximum conductor cross-section of 2.5 mm², accommodating up to 3 terminals at 2.5 mm² or 5 terminals at 1.5 mm². SELF-SEALING DESIGN: Features self-sealing insertion membranes with sealing range 8.2-12.5 mm, providing 12 cable entry points (2 rear, 10 side) for flexible installation options. DURABLE CONSTRUCTION: Compact grey housing made from polyethylene base and polypropylene cover, measuring 89mm width × 43mm length × 38mm height, weighing only 0.026 kg. TEMPERATURE RANGE: Operates reliably in ambient temperatures from -25°C to 40°C with impact resistance rating IK07 and glow-wire flammability rating of 650°C, halogen-free materials.
