Spiral drill RUKO DIN 338 10.5 mm HSS Co5 Right hand cut

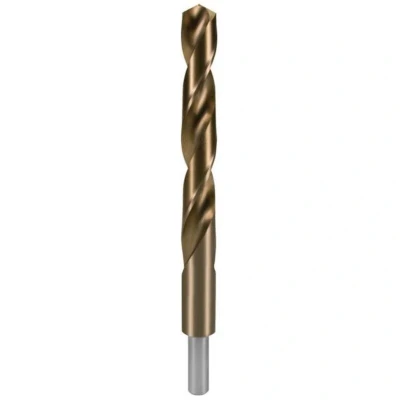

Ruko 2005105 Din 338 N Hss-co 5 Ø 10.5 Mm Metal Drill Bit. Twist drill bit according to DIN 338, made of HSS-E Co 5 high-speed steel.It features an N-type geometry, bright finish, and reduced shank.Its point combines a 130° angle with a C-form cross grinding.The helix angle is 20-30°.Technical characteristics:·.· Material: HSS-E Co 5 high-speed steel, with 5% cobalt.· Surface finish: bright.· Shank: reduced.· Point grinding: cross, C form.· Point angle: 130°.· Helix angle: 20-30°.· Cutting direction: right.· Diameter tolerance: h8.· Indicated drilling depth: 5 × diameter.Recommended applications or uses:· Drilling of steel with resistance below 1.100 N/mm² and stainless steel as main uses.· Drilling of alloyed titanium as a secondary use.· Drilling of diameters larger than the direct clamping capacity of a chuck up to 13 mm, thanks to the reduced shank.Net weight (in Kg): 0.0590.Item length (in cm): 13.3.Item width (in cm): 1.05 Item height (in cm) 1.05.Ø (mm): 10.5.Shank Ø (mm): 10.Shank length (mm): 30.Total length (mm): 133. tradeinn Bricoinn

Cutting direction: Right hand cutting Shank: Reduced Drilling depth: 5 x D Point cut: Shape N Helical point normal ground Point angle: 118 degree
