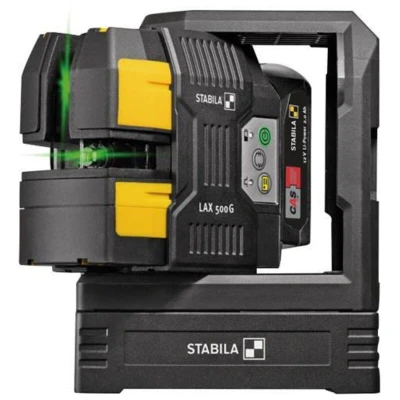

Stabila LAX 500 G Cross Line and Plumb Point Laser Level STBLAX500GKT

The Stabila LAX 500 G Cross Line Laser is a professional tool designed for precise alignment and leveling tasks in both horizontal and vertical planes. It uses Advanced GreenBeam technology to create highly visible green laser lines and plumb dots, enabling quick transfers of height and axis alignment over distances up to 40 meters. The unit can be positioned at any inclination in manual mode, and its rugged design, protectors, and adaptable mounting options help ensure reliable performance on demanding job sites. It is compatible with line receivers as an optional accessory, and its optics are protected by a robust housing. Included components support ready-to-use setup with a dedicated base, wall bracket, and carrying case for easy transport and storage.

Features

• Advanced GreenBeam for highly visible lines
• Self-leveling within ±5° with plumb points
• Horizontal/vertical range up to 40 m
• IP54 protection; rugged, shock-absorbent casing
• Optional line receivers; 1/4" tripod mounting

Technical specifications

• Laser Class: 2
• Wavelength: 510–530 nm
• Self-levelling range: ±5°
• Accuracy: ±0.30 mm/m
• Tripod connection: 1/4 inch
• Included accessories: battery, charger, laser base, wall bracket, target plate, case
