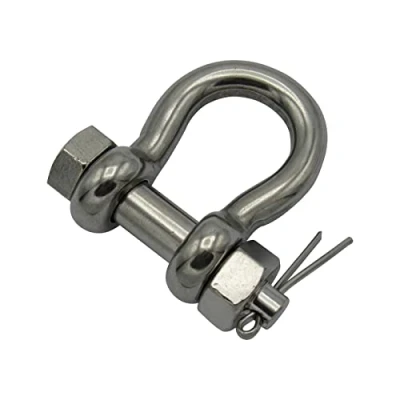

Stainless Steel Bow Shackle with Safety Pin 2 Ton 12MM (Marine Lifting Load Rated)

General description Stainless Steel Bow Shackle with Safety Pin is designed for marine lifting applications, rated for a safe working load of 2 tons. Made from 316 Grade Stainless Steel (A4), these shackles feature safety anchor pins that prevent accidental loosening, ensuring optimum safety during use. They are suitable for a variety of lifting tasks. Technical specifications Material: 316 Grade Stainless Steel (A4) Safe Working Load: 2 Ton Safety Factor: 4:1 Product Codes and Dimensions: SFSSLRB1: A=9.7mm, B=12mm, C=17.9mm, D=23.8mm, E=37.2mm, F=26.2mm, G=13.1mm, H=65mm SFSSLRB2: A=12mm, B=16mm, C=21mm, D=31mm, E=47mm, F=33mm, G=16.5mm, H=81mm SFSSLRB3: A=15.5mm, B=19.5mm, C=27mm, D=39mm, E=61mm, F=43mm, G=21.5mm, H=104.5mm SFSSLRB4: A=18.5mm, B=21mm, C=37.5mm, D=42.5mm, E=74mm, F=53mm, G=26.5mm, H=123.5mm SFSSLRB5: A=21.5mm, B=24mm, C=33.5mm, D=51.5mm, E=82.5mm, F=56.5mm, G=28mm, H=141mm SFSSLRB6: A=25mm, B=27.5mm, C=39.5mm, D=57.5mm, E=95mm, F=65.5mm, G=32.5mm, H=160mm Other

Safe Working Load - 2 Ton Pin x Body Diameter: 12MM x 16MM Material - 316 Marine Grade Stainless Steel Safety Factor 4:1 A = 12MM B = 16MM C = 21MM D = 30.5MM E = 48MM F = 33MM G = 16.5MM H = 83.5, Manufacturer: SecureFix Direct
