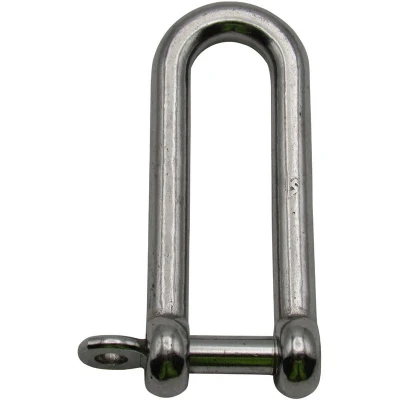

Stainless Steel Long Dee Shackle Captive Screw 4MM 12MM (Marine Fishing Boat Trawler D Connector) (10MM)

ManoMano

General description Long D Shackle with Captive Screw Pin 4MM - 12MM. Shackles are essential accessories for chains and straps, and they are versatile for various applications. These Dee Shackles feature a captive screw pin that secures the load, preventing the pin from detaching and getting lost. Made from stainless steel, these D Shackles are strong, durable, and resistant to rust and corrosion, making them ideal for marine use. Technical specifications Size - 4MM: A = 32MM, B = 16.5MM, C = 8.2MM, D = 3.5MM Size - 6MM: A = 44.8MM, B = 12.75MM, C = 11.5MM, D = 5.25MM Size - 8MM: A = 60.75MM, B = 16.15MM, C = 16MM, D = 7MM Size - 10MM: A = 75MM, B = 39.5MM, C = 19.5MM, D = 9MM Size - 12MM: A = 90MM, B = 47.5MM, C = 23.5MM, D = 11MM

Amazon

Extremely useful for many applications Comes with a Captive Pin that doesn't leave the body of the shackle Made from Marine Grade Stainless Steel Available from 4MM - 12MM See Main Description for individual product dimensions
