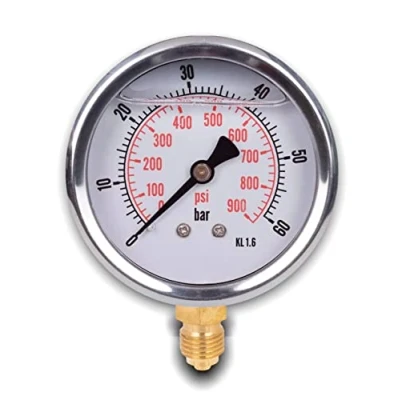

Stainless steel radial pressure gauge D.63 mm with 1/4 glycerine connector from the bottom (0 60 bar)

Stainless steel case bathed in glycerine suitable for indoors and outdoors or where there are vibrations. Pressure gauge built according to UNI EN 837.1 Standards IP65 AISI 304 stainless steel case dn 63 mm transparent in polycarbonate. BRASS pin and movement with RADIAL connection (ISO 228). Aluminum dial with white background, black BAR and red PSI scale. Accuracy class 2.5 - 1.0%. Operating temperature -10°C / +65°C Constant 75% - Variable 60% Overpressure 25% up to 60 bar, 15% above NPT ANSI B.1.20.1 thread with glycerine, oxygen degreasing, custom scales and/or connections, logos, colored sectors. Radial attachment at 3/9/12 o'clock
