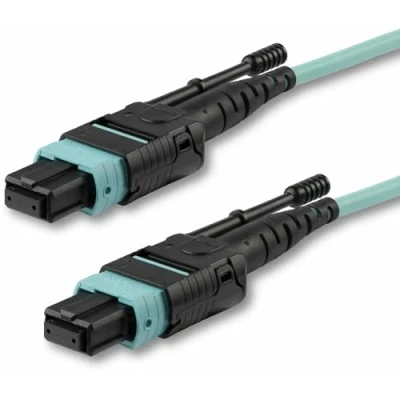

StarTech.com 10m (30ft) MTP(F)/PC to OM3 Multimode Fiber Optic Cable, 12F Type A, OFNP, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Patch Cord (MPO12PL10M)

Prices from
228.86

Description

Amazon OM3 FIBER CABLE: MTP/MPO Plenum-Rated OM3 Multimode Fiber Cable delivers up to 40 Gbps; This 12-fiber cable supports different networking devices at varying speeds; Ideal for high density connections to servers, switches, and Storage Area Networks (SANs) QUALITY CONSTRUCTION: OFNP jacket EMIts low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keeps insertion loss below 0.5dB COMPATIBILITY: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers SPECS: 10m (33ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: ≥2000MHz•km at 850nm; Cable OD: 3.0mm; Insertion Loss: ≤0.5dB, Return Loss: ≥20dB; Backed for Life

Compare webshops (1)

Shop
Price
£ 228.86
Description (1)

OM3 FIBER CABLE: MTP/MPO Plenum-Rated OM3 Multimode Fiber Cable delivers up to 40 Gbps; This 12-fiber cable supports different networking devices at varying speeds; Ideal for high density connections to servers, switches, and Storage Area Networks (SANs) QUALITY CONSTRUCTION: OFNP jacket EMIts low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keeps insertion loss below 0.5dB COMPATIBILITY: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers SPECS: 10m (33ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: ≥2000MHz•km at 850nm; Cable OD: 3.0mm; Insertion Loss: ≤0.5dB, Return Loss: ≥20dB; Backed for Life


Product specifications

Brand Startech
EAN
  • 0065030878999
