StarTech.com 16 Port Industrial USB 5Gbps Hub with Power Adapter, Metal, DIN/Surface/Rack Mountable, Dual Host Hub/Switch

Startech S5g16 Docking Station. Expand your connectivity in demanding industrial settings with the STARTECH S5G16 16-Port Industrial USB 3.2 Gen 1 Hub. This rugged, all-metal hub offers 16 USB-A 5Gbps ports and a dual-host switch for seamless connection to two computers. Engineered for harsh environments, it features robust ESD protection and multiple mounting options (DIN-rail, surface, rackmount). Power up your devices with the included 160W adapter, supporting USB BC 1.2 charging for up to 120W shared. Enhance productivity with the Connectivity Tools application for device monitoring. Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub The 16-Port Industrial USB 5Gbps Hub with Power Adapter features 16 downstream USB-A ports The rugged all-metal construction is suitable for use in industrial rackmount applications Level-4 Electrostatic Discharge (ESD) protection safeguards against 15kV Air / 8kV Contact discharges The hub features a 2-port host switch, enabling users to switch between two host devices Engineered for Use in Industrial Environments This USB hub is built to withstand harsh industrial environments It features a rugged steel housing that protects against physical hazards such as drops and impacts It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity Three Mounting Options The 16-Port USB hub can be attached to a surface , rack mounted, or DIN-rail mounted The 19´´ rackmount rails are compliant with EIA-310-D standards, ensuring compatibility with standard racks These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms Mount industrial automation and control equipment in an electrical enclosure or cabinet, using the standard DIN-rail (Top Hat/TH) mounting hardware Power Adapter Included This USB hub includes a 160W power adapter that connects to the 2-wire terminal block connector When connected to the power adapter, the USB hub supports USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports a maximum of 3.0A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used For optional power redundancy, the USB hub features a secondary power input where a barrel-power adapter (not included) can be connected The barrel-power input supports a 12-to-24-volt input range, and can be ideal for mission critical applications Dual-Host Switch The USB Hub connects to two desktop or laptop computers, and features a dual-host switch enables easy toggling between the host devices Enhance Productivity and Device Management with the Connectivity Tools Application Developed to improve performance and security, Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories This product utilizes the USB Event Monitoring utility Use this utility to track and log connected USB devices For more information and to download the Connectivity Tools application, please visit: /Connectivity-Tools The Advantage 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA Host interface:2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces:USB 3.2 Gen 1 (3.1 Gen 1) Type-A Data transfer rate:5000 Mbit/s, Product colour:Black, Housing material:Steel Power consumption (max):158.4 W, Input voltage:100 - 240 V, Input current:3.5 A Weight:1.1 kg Package width:273 mm, Package depth:368 mm, Package height:98 mm 16-PORT INDUSTRIAL USB HUB:USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact). tradeinn Techinn

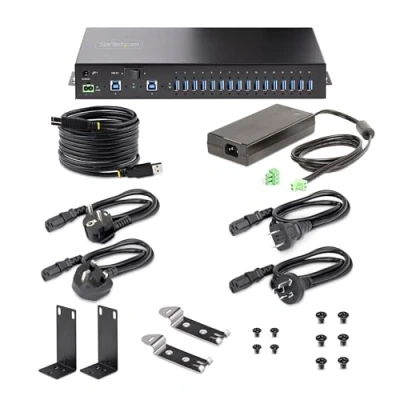

16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download) FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections INCLUDED 160W POWER ADAPTER: The rugged USB Hub is powered by the included power adapter using the built-in DC 2-wire terminal block; Overcurrent protection protects connected devices from overdrawing power; DC barrel jack for optional power redundancy POWER & CHARGE: When connected to the power adapter, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch
