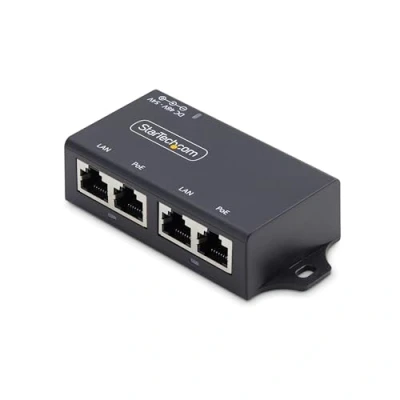

StarTech.com 2 Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/at), 4x 10/100/1000BASE T RJ45, 30W, Wall Mountable

Startech Poe Injector. Power up two demanding PoE devices like Wi-Fi 7 access points or IP cameras with this 2-port PoE+ injector. It delivers 1Gbps data and up to 30W of power to each device, extending up to 100m over Cat5e/6 cabling. Featuring auto-negotiation for 10/100/1000Mbps Ethernet, Level-4 ESD protection, surge protection, and streamlined, wall-mountable design for easy installation and organized cable management. Includes EU plug. EU Plug.This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps.This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).Features:- Two-Port Poe+ Injector:Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices.Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI.- Network Compatibility:Auto-negotiation between 10/100/1000Mbps.Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling.Surge protection up to 2kV.- Hassle-Free Installation:Wall-mountable w/front facing mounting ears and screw holes molded into the housing.Streamline deployment without additional software.Connect the PoE injector to the network (switch/router)/remote PD via standard cabling.- Applications:Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points.Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet Versatile PoE Injector:- Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A).Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists.This includes access points, IP cameras, VoIP phone systems, IPTV and access controls.The flexible design allows for either desktop or surface-mount use.Streamlined Cable Management:- All Ethernet cables can be routed from one side of the unit for efficient and organized cable management.The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.Specifications:Connector(s):- Connector A:1.- RJ-45 (PoE+).- Connector B:1.- RJ-45 Environmental:- Operating Temperature:0°C.- 60°C (32°F.- 140°F).- Storage Temperature:‐10°C.- 70°C (14°F.- 158°F).- Humidity:5%.- 90% RH (non-condensing) Hardware:- Ports:2 Industry Standards:- IEEE 802.3at Type 2 / PoE+ (30 W).- IEEE 802.3af Type 1 / PoE (15.4 W).- IEEE 802.3ab (1000BASE-T).- IEEE 802.3u (100BASE-TX).- IEEE 802.3i (10BASE-T).- IEC 61000-4-2 Level-4 ESD protection (8kV contact/15kV air).- Chipset ID:IC Plus.- IP802AR Indicators:- LED Indicators:1.- LED Indicator Solid Green:- PoE Injector is receiving power.- 1.- PoE Indicator.- Solid Green:Indicates PoE has been negotiated and power is being supplied to the Powered Device Performance:- Wake On Lan:Yes.- Maximum Data Transfer Rate:1000 Mbps.- Maximum Cable Length:100 m [328.0 ft] ESD Protection:- +/-8kV (Contact).- +/-15kV (Air).- Compatible Networks:10/100/1000 Mbps.- Auto MDIX:Yes.- PXE:Yes.- Jumbo Frame Support:9K max.- Supported Protocols:Wake-on-LAN (WoL) Physical Characteristics:- Product Height:2.5 cm [1.0 in].- Product Length:10.2 cm [4.0 in].- Weight of Product:60.0 g [2.1 oz].- Product Width:4.6 cm [1.8 in].- Material:Plastic.Power:- Power Source:AC Adapter Included.- Input Voltage:100.- 240 AC.- Input Current:1.5.- Output Voltage:52 DC.- Output Current:1.25.- Center Tip Polarity:Positive.- Plug Type:M.- Power Consumption (In Watts):65 In the Box:- Included in Package:- 1.- PoE Injector.- 1.- EU/UK Power Adapter.- 1.- Quick-Start Guide. tradeinn Techinn

TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch(82x25x46mm)
