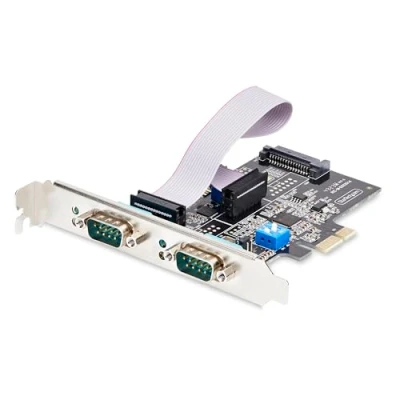

StarTech.com 2 Port Serial PCIe Card, Dual PCI Express to RS232/RS422/RS485 DB9 Standard/Low Profile Brackets, 16C1050 UART, ESD Protection, Windows/Linux (2S232422485 PC CARD)

Startech 2s232422485-pc-card Pci-e Expansion Card. Expand your connectivity with the STARTECH 2-Port PCIe Serial Card. This versatile card supports RS-232, RS-422, and RS-485 devices, each configurable with independent power (12V/5V) or no power via pin 9, utilizing auxiliary SATA power. Monitor transmit/receive status with integrated LEDs. Ideal for POS terminals, factory automation, and sensor applications, it includes standard and low-profile brackets for broad compatibility with desktop and server systems. Enhanced with screw-lock DB9 ports and high-speed data transmission up to 921.6 Kbit/s, this PCIe 2.0 expansion card ensures reliable connections across various operating systems. Features:- 2-Port Pcie Serial Card:Built-in DIP switches allow each DB9 port to operate in its own mode independently, allowing connection of RS-232, RS-422 and RS-485 devices.- LEDs to monitor transmit/receive status.- Configurable Power:Features configurable 12V (1.5A per port), 5V (1.5A per port), or no power (RI) via pin 9 using auxiliary SATA power.- Individually configurable per-port power modes.- Applications:Ideal for desktop and server computers, with a wide range of uses such as point-of-sale terminals and factory automation, sensors and others.- DB9 ports work with screw-lock cables.- Standard And Low Profile Brackets The serial card is equipped with one standard profile bracket (pre-installed), and includes two low profile brackets for compatibility with small form factor desktops/servers.Specifications:Ports and Interfaces:- Host interface:PCIe.- Output interface:Serial.- Expansion Card Standard:PCIe 2.0.- Serial port:2.- Interface serial type:RS-232/422/485 Design:- Internal:Yes.Features:- Integrated circuit:ASIX.- AX99100.- Transmission speed:921.6 Kbit/s.- FIFO (First In, First Out):256 B.- Data bits:5, 6, 7, 8, 9.- Stop bits:1, 1.5, 2.- Flow control support:Yes Environmental conditions::- Operating temperature range:0.- 70 °C.- Storage temperature range:-20.- 80 °C.- Relative humidity range for operation:20.- 80% System Requirements:- Supported Windows operating system:Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64.- Supported Linux operating system:Yes.- Supported Server Operating System:Windows Server 2016, Windows Server 2019, Windows Server 2022 Technical details:- Sustainability compliance:Yes.- Sustainability certificates:RoHS, Trade Agreements Act (TAA).- Compliance certificates:RoHS, Trade Agreements Act (TAA) Weight and measurements:- Broad:102 mm.- Depth:105 mm.- Height:16 mm.- Weight:57 g. tradeinn Techinn

2-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status CONFIGURABLE POWER: Dual-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with a standard profile bracket (pre-installed), and includes two low-profile brackets for compatibility with small form factor desktops/servers TECH SPECS: Asix AX99100 Chipset; 16C450 and 16C550 UART compatible; 2x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; COM Retention; Supports Windows and Linux; Odd/Even/Mark/Space/None Parity Modes; 5/6/7/8/9 Data Bits; PCIe 2.0 x1
