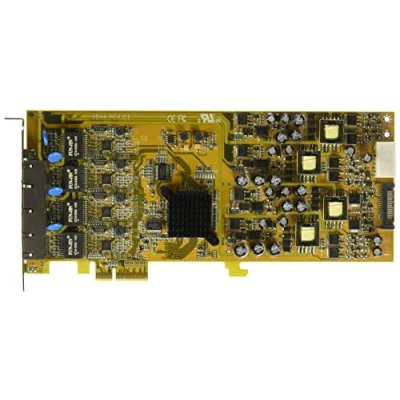

StarTech.com 4 Port Gigabit PoE (Power over Ethernet) Card PCIe Network / PoE+ Up to 25W Per NIC Ethernet (ST4000PEXPSE)

Startech Pce Express Ethernet Gigabit 4 Port Power Over Ethernet Pci-e Expansion Card. Upgrade your system with the StarTech.com 4-Port Gigabit PoE Expansion Card. This PCI Express card adds four Ethernet ports, each capable of delivering up to 25.5W of power via IEEE 802.3at PoE. Streamline your setup by powering devices like IP cameras and phones with a single Ethernet cable, reducing clutter and complexity. Supporting features like Jumbo Frames and Wake-on-LAN, this card is ideal for servers, workstations, and clients seeking enhanced connectivity and power efficiency. The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot.Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD).This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).Specifications:Connector(s):- 1.- Connector Type(s):PCI Express x4.- 1.- Internal Ports:SATA Power (15 pin) LP4 (4 pin.Large Drive Power).- 4.- External Ports:RJ-45 Environmental:- Operating Temperature:0°C to 55°C (32°F to 131°F).- Storage Temperature:-40°C to 75°C (-40°F to 158°F).- Humidity:10~90% RH (Non-condensing) Hardware:- Ports:4.- Interface:RJ45 (Gigabit Ethernet):Bus Type.- PCI Express:Card Type.- Standard Profile:Port Style.- Integrated on Card:Industry Standards Packaging Information:- Package Height:2.6 in [66.0 mm].- Package Length:11.7 in [29.6 cm].- Package Width:7.4 in [18.8 cm].- Shipping (Package) Weight:15.1 oz [428.0 g].Performance:- Maximum Data Transfer Rate:2000 Mbps (Full-duplex).- Buffer Size:48 KB.- Compatible Networks:10/100/1000 Mbps.- Auto MDIX:Yes.- Full Duplex Support:Yes.- Jumbo Frame Support:9K max.- Promiscuous Mode:Yes Physical Characteristics:- Material:Steel.- Product Length:9.6 in [24.3 cm].- Product Width:0.7 in [18.0 mm].- Product Height:4.7 in [12.0 cm].- Weight of Product:3.6 oz [102.0 g] Power:- Output Voltage:48 DC. tradeinn Techinn

FULLY COMPLIANT: This 4 port Gigabit PoE card is fully compliant with IEEE 802.3at Class 1 & Class 2, Type 1, Power over Ethernet (PoE) standards PSE SUPPORT: This PCIe network card features a Power Sourcing Equipment (PSE) endpoint that supports up to 50V, 25.5 watts max. output per port POWER YOUR PoE DEVICES: Provide connectivity and power to compatible PoE devices, including cameras and wireless access points using this PCIe PoE Ethernet card ULTIMATE SUPPORT: The Gigabit NIC supports IEEE 802.3at, 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our network cards are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
