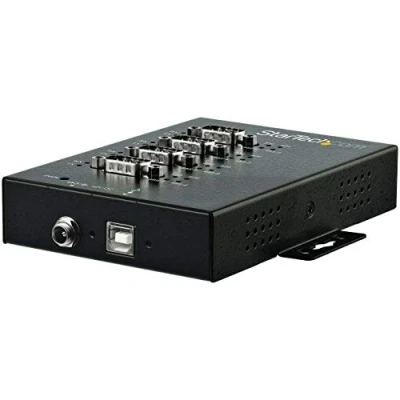

StarTech.com 4 Port Serial Hub USB to RS232/RS485/RS422 Adapter 2.0 DB9 Converter IP30 Rated Din Rail Mountable Metal 15kV ESD Protection (ICUSB234854I)

Startech 4xdb9 To Usb Converter. Transform your laptop or desktop with the StarTech 4xDB9 to USB Converter. This rugged, IP30-rated metal hub instantly adds four versatile serial ports, supporting RS232, RS422, and 2/4-wire RS485 protocols. Built for demanding environments, it features 15kV ESD protection, locking connectors to prevent disconnections, and flexible mounting options for wall or DIN rail. Power each serial port individually (5V, 12V, or 0V) and connect a wide array of serial devices with ease. Universally compatible with Windows, macOS, and Linux. Add four extra COM ports to your laptop or desktop computer, quickly and easily.This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.Supports multiple serial protocols:- The versatile serial adapter converts a single USB port into four RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage.It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.Ideal for harsh environments:- With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments.It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit.It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.- Rugged & reliable:this industrial metal usb to serial adapter hub adds 4 rs-232/422/485 ports & 1 usb 2.0 port w/ 15kv esd surge protection (level 4), ip30 rating & locking connectors on all ports.- 4 serial ports:the ports on this usb to serial converter can be individually configured to rs232, rs422 or rs485 (2wire/4wire) at baud rates up to 921.6kbps for devices like barcode scanners/printers.- Mounting options:this metal mountable 4-port serial hub w/ 6ft (1.8 m) screw-lock usb cable incl.installs securely to a desk, wall or din rail using the built-in mounting ears & incl.din brackets.- Flexible power:this serial hub can be powered with either the 12v screw-locking power adapter or the 5v usb input, while each serial port (pin 9) can be set to 5v, 12v (power adapter required), or 0v.- Widely compatible:to connect industrial grade equipment to any terminal, the usb to multiple db9 male serial converter supports current and legacy windows, linux, macos, as well as embedded platforms Compatibility:- Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.9 to 10.15, 11.0.Specifications:Connector(s):- 4.- External Ports:DB-9 (9 pin, D-Sub).- 1.- External Ports:USB Type-B (4 pin) USB 2.0 Environmental:- Operating Temperature:0°C to 55°C (32°F to 131°F).- Storage Temperature:-20°C to 85°C (-4°F to 185°F).- Humidity:5~95% RH Hardware:- Ports:4.- Interface:Serial.- Bus Type:USB 2.0.- Port Style:External Hub.- Chipset ID:FTDI.- FT4232H.- Indicators:4.- LED Indicators.- Sets of 4.- port mode:Port send.- Port receive:1.- LED Indicators Power.Performance:- Maximum Data Transfer Rate:921.6 Kbps.- Serial Protocol:RS-232/422/485.- Max Baud Rate:921.6 Kbps.- Data Bits:7, 8.- Buffer Size:2 KB.- Parity:Odd, Even, Mark, Space, None.- Stop Bits:1, 2.- Surge Protection:15 kV ESD Surge Protection Physical Characteristics:- Material:Steel.- Product Length:5.0 in [12.8 cm].- Product Width:4.6 in [11.6 cm].- Product Height:1.0 in [25 mm].- Weight of Product:13.5 oz [382 g] Power:- Output Voltage:12V DC.- Output Current:1A.- Plug Type:N Software:- OS Compatibility:Windows® 7, 8, 8.1, 10.- Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019.- macOS 10.9 to 10.15, 11.0.- Linux 2.4.x to 4.11.x LTS Versions only What´s in the Box:- 1.- Included in Package:USB serial hub.- 6 ft.[2 m] USB-B with screw lock to USB-A cable.- DIN rail kit.- instruction manual. tradeinn Techinn

RUGGED & RELIABLE: This industrial metal USB to serial adapter hub adds 4 RS-232/422/485 ports & 1 USB 2.0 port w/ 15kV ESD surge protection (level 4), IP30 rating & locking connectors on all ports 4 SERIAL PORTS: The ports on this USB to serial converter can be individually configured to RS232, RS422 or RS485 (2wire/4wire) at baud rates up to 921.6Kbps for devices like barcode scanners/printers MOUNTING OPTIONS: This metal mountable 4-port serial hub w/ 6ft (1.8 m) screw-lock USB cable incl. installs securely to a desk, wall or DIN rail using the built-in mounting ears & incl. DIN brackets FLEXIBLE POWER: This serial hub can be powered with either the 12V screw-locking power adapter or the 5V USB input, while each serial port (pin 9) can be set to 5V, 12V (power adapter required), or 0V WIDELY COMPATIBLE: To connect industrial grade equipment to any terminal, the USB to multiple DB9 male serial converter supports current and legacy Windows, Linux, macOS, as well as embedded platforms
