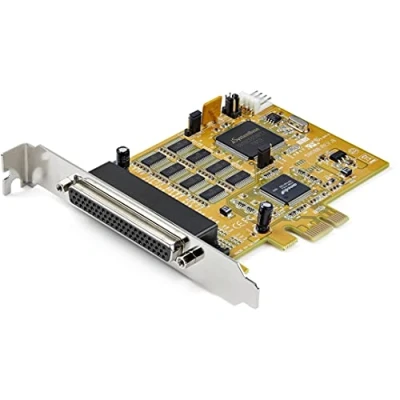

StarTech.com 8 Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 16C1050 UART, 15kV ESD Windows Only

Startech Pex8s1050 Pci-e Expansion Card. Expand your connectivity with the STARTECH PEX8S1050 PCI-E Expansion Card. This internal card adds 8 RS-232 serial ports to your system, perfect for industrial and commercial applications. Featuring Asmedia integrated circuits and supporting high transmission speeds up to 921.6 Kbit/s, it ensures reliable communication. It´s compatible with a wide range of Windows and Linux operating systems, and offers flexible data and flow control settings. Built for durability with a long MTBF and operating temperature range. Specifications:Ports And Interfaces:- Host Interface:Pcie.- Output Interface:Serial.- Serial Port:8.- Interface Serial Type:Rs-232 Design:- Internal:Yes.- Maximum Cable Length:0.5m.- Mean Time Between Failure:160013h.Features:- Integrated Circuit:Asmedia.- Asm1083, System Base.- Sb16c1058pci.- Transmission Speed:921.6 Kbit/S.- Peps (First In, First Out):256b.- Data Bits:5,6,7,8.- Stop Bits:1,1.5,2.- Flow Control Type:Rts/Cts,Xon/Xoff Environmental Conditions:- Operating Temperature Range:0.- 55°C.- Storage Temperature Interval:-40.- 75°C.- Relative Humidity Range For Operation:5.- 95% System Requirements:- Supported Windows Operating System:Windows 10,Windows 10 Education, Windows 10 Education X64,Windows 10 Enterprise, Windows 10 Enterprise 0 Pro X64,Windows 10 X64,Windows 2000,Windows 7,Windows 7 Enterprise, Windows 7 Enterprise Sional X64,Windows 7 Starter, Windows 7 Starter X64,Windows 7 Ultimate, Windows 7 Ultimate X64,Windows 7 Windows 8.1 Enterprise, Windows 8.1 Enterprise X64,Windows 8.1 Pro, Windows 8.1 Pro X64,Windows 8.1 Enterprise X64,Windows Vista Home Basic, Windows Vista Home Basic X64,Windows Vista Home Premium, Windows Vista Home Premium Xp Professional X64.- Supported Linux Operating System:Yes.- Supported Server Operating System:Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 Technical Details:- Sustainability Certificates:Rohs Weight And Measurements:- Broad:16mm.- Depth:105mm.- Height:120mm.- Weight:74g. tradeinn Techinn

8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952 OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface WINDOWS ONLY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For standard profile desktop/servers VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART compatible; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; Supports Windows Only; None, Even, or Odd Parity Modes; 5/6/7/8 Data Bits; RS-232 Protocol; Standard Profile Bracket
