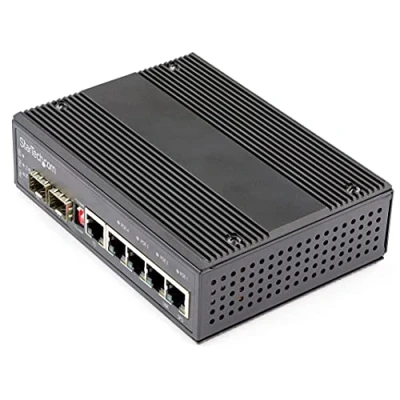

StarTech.com Industrial 5 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12 48VDC 10/100/1000 Rugged Power Over LAN 40C to 75C DIN Mountable (IES1G52UP12V)

Startech Ies1g52up12v Switch Black One Size / EU Plug 220V. Deploy and scale your network with this versatile Gigabit Ethernet switch. Featuring 4 PoE+ ports, an SFP slot, and a flexible uplink port, it powers devices like cameras and Wi-Fi hotspots with up to 30W per port. Its industrial-grade, IP-30 enclosure handles extreme temperatures (-40°C to 75°C), vibration, shock, and free falls, ensuring reliability. Enjoy flexible low-voltage power inputs (12/24/48/56V DC) and dual power inputs for redundancy. With a 120W PoE budget and over 600.000 hours MTBF, it’s built for demanding environments. EU Plug. EU Plug.Easily deploy or scale your network with this Gigabit Ethernet switch, featuring four dedicated PoE+ enabled ports, a dedicated open SFP slot, as well as the flexibility of an open RJ-45/SFP port for use as an uplink or for non-PoE devices.Features IP-30 enclosure, compact design, and wall or DIN rail mounting.Features:Power over Ethernet (PoE) and low voltage:- Ideal for powering PoE devices where conventional power is not available.supports low power supplies such as 12V DC for transportation-related applications (car/bus/train) and solar power.PoE power rating is extended to PoE/PoE+ standards (IEEE 802.3af/at, 55V) for applications where non-standard 12V (or higher) power supplies are available.- With a total power budget of 120W, this Ethernet PSE switch delivers up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) compliant powered devices (PDs), such as:- Cameras.- Sensors.- Wi-Fi hotspots.- Uses Cat 5e (or higher) Ethernet network cabling.Power input flexibility and low voltage:- Flexible power inputs, including 12/24/48/56V DC, as well as low voltage DC inputs, reduce installation complexities by preventing additional in-line devices from scaling up the power before it reaches the switch.- This single switch allows for 5x active RJ-45 ports (4x PoE) and 1 SFP, or 4x RJ-45 (all PoE) and 2 SFP, for a total of 6 device connections.Designed for environments under extreme conditions:- Industrial-strength features include:operating temperatures from -40 C to 75 C, IP-30 rated enclosure, standard testing against vibration, shock and free fall.- Vibrations:EN 60068-2-6.- Impacts:EN 60068-2-27.- Free falls:EN 60068-2-32.- Features an external aluminum heatsink for enhanced passive cooling.MTBF rating of 600,000+ hours via Telcordia/Bellcore at 50C means long-term reliability.Double power input:- Dual power input provides redundancy.Supports dual terminal block power, allowing the product to be hardwired from multiple power sources for applications requiring high availability.Specifications:- Power over Ethernet (PoE):Yes.- Routing Support:Yes.- No.PoE ports:4.- PoE Budget:120 W Dimensions:- Broad1:4,2 mm.- Depth:10,5 mm.- Height:42,8 mm.- Weight:701,4 gr Feeding:- Type of power supply:PoE.- Energy consumption:120 W. tradeinn Techinn

FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots | Use with devices like cameras, sensors, wi-fi Aps -FLEXIBLE 12V POWER INPUT: Can be wired via dual redundant terminal block inputs with voltage as low as 12V DC, boosted as needed to PoE/PoE+ (55V) for applications like solar, rail, and automotive ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount TECH SPECS: 10/100/1000 Mbps Auto-Negotiation | Unmanaged | 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flex Copper or SFP port (MSA Compliant) | Total power budget: 120W STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
