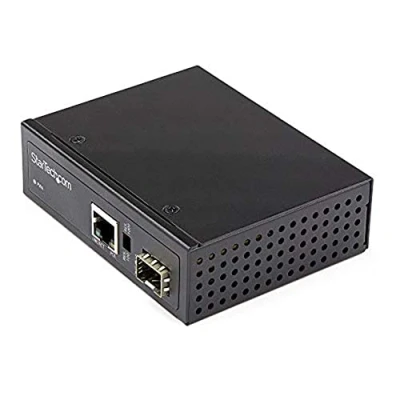

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W SFP RJ45 Singlemode/Multimode Copper Gigabit Compact Size IP 30/ 40 +75C (IMC1GSFP60W)

Startech Imc1gsfp60w Poe+ Ethernet To Fiber Media Converter 60w. Extend your network and power remote PoE devices up to 60W with this rugged Gigabit fiber media converter. Featuring an open SFP slot for flexible fiber connectivity and dual power inputs, it´s ideal for harsh environments. Power cameras, access points, and more over long distances efficiently. (EU Plug). EU Plug.This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice.It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more.The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.Designed for Harsh Environments:- This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes.The converter also includes a set of DIN mounting rails for additional installation options.Up to 60 Watts of Power for Connected Devices:- 60 watts of available support a wide range of PD devices such as:Pan-and-Tilt Cameras:- Lighting.- Cameras.- Sensors.- WiFi Access Points.- Open SFP Slot to Leverage Your Current Infrastructure.- The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link.It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.Dual Power Inputs:- Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.Specifications:- Full Duplex Support:Yes Connector(s):- 1.- Connector A:Terminal Block (3 Wire).- RJ-45 (PoE+):SFP Slot Environmental:- Operating Temperature:-40°C to 75°C.- Storage Temperature:-40°C to 85°C.- Humidity:5% to 95% (non-condensing) Hardware:- Industry Standards:IEEE 802.3z 1000BASE-TX.- PoE:Yes.- Industry Standards:IEEE 802.3 1000BASE-T.- IEEE 802.3u 100BASE-TX.- IEEE 802.3 10BASE-T.- ESD:IEC 61000-4-2:Contact:6KV.Air:8KV.- EFT:IEC 61000-4-4:Power:2KV.Signal:2KV.- IEEE 802.3x.- Vibration:EN 60068-2-6.- IEEE 802.3af Power over Ethernet.- Shock:EN 60068-2-27.- IEEE 802.3at PoE Plus.- Free-fall:EN 60068-2-32.- Housing:IP-30.- Chipset ID:IC Plus IP1103A.- Microsemi:PD69101ILQ-TR Packaging Information:- Package Height:2.5 in [64.0 mm].- Package Length:6.4 in [16.2 cm].- Shipping (Package) Weight:13.9 oz [395.0 g].- Package Width:8.3 in [21.1 cm].Performance:- Maximum Cable Length:328.0 ft [100 m].- Bandwidth:2G (Maximum per port and backplane).- Buffer Size:512 KB.- Flow Control:IEEE 802.3x Flow Control and Back Pressure.- Surge Protection:IEC 61000-4-5:Power:2KV.- Compatible Networks:10/100/1000 Mbps.- Auto MDIX:Yes.- Jumbo Frame Support:16K max.- Switching Architecture:Back-plane (Switching Fabric):4Gbps General.Specifications:- ESD:IEC 61000-4-2:Contact:6KV.Air:8KV.- EFT:IEC 61000-4-4:Power:2KV.Signal:2KV.- Surge:IEC 61000-4-5:Power:2KV.Signal:2KV.- Vibration:EN 60068-2-6.- Shock:EN 60068-2-27.- Free-fall:EN 60068-2-32.- Housing:IP-30.- Safety:EN60950-1.- Safety:MET (UL) 60950-1.- MTBF:561556 hours Physical Characteristics:- Product Height:1.3 in [32.0 mm].- Product Length:4.1 in [10.4 cm].- Weight of Product:5.4 oz [153.0 g].- Product Width:3.2 in [81.5 mm].- Material:Aluminum.- Cable Length:328.0 ft [100 m].Power:- Input Voltage:48 ~ 56V DC.- Plug Type:N.- Power Consumption (In Watts):Max 60W Special Notes / Requirements:- Patents and Licenses:United States Patent No.5,406,260 (expired).- United States Patent No.6,650,622.- United States Patent No.7,457,250.- United States Patent No.8,155,012.- United States Patent No.8,902,760.- United States Patent No.8,942,107.- United States Patent No.9,019,838.- United States Patent No.9,049,019.- United States Patent Application No.14/695,456.- United States Patent Application No.14/726,940 in the Box:- 1.- Included in Package:Media Converter.- Terminal Block.- Terminal Block to Barrel Power Connector Adapter.- Mounting Hardware Kit.- Quick-Start Guide. tradeinn Techinn

EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors TECH SPECS: 1 Gbps | 1 x Open SFP (MSA Compliant) | 1x RJ45 | 48V-56VDC | IEEE 802.3af / IEEE 802.3at (60W) | 10/100/1000Mbps | LFP | 16K Jumbo Frames | DIN or Wall Mount Hardware Included | 2 yr warr OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types FLEXIBLE POWER: Can be hardwired using terminal block (48-56VDC) power or powered using a standard Type-N barrel wall adapter (not included) International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.
