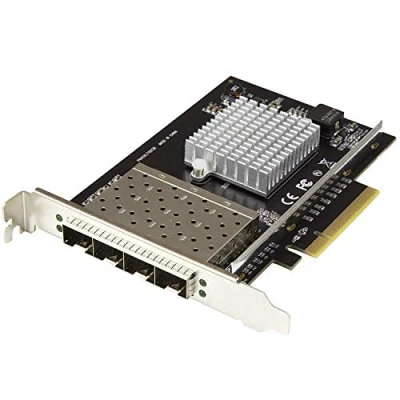

StarTech.com Quad Port 10G SFP+ Network Card Intel XL710 Open Converged Adapter PCIe 10 Gigabit Ethernet Server NIC 10GbE Fiber Optic LAN Dell PowerEdge HPE ProLiant (PEX10GSFP4I)

Startech Pcie 4 Port Sfp+ Intel Xl710 Pci-e Expansion Card. Elevate your server or workstation´s network capabilities with this 4-port SFP+ PCIe expansion card, featuring the Intel XL710 chipset. Seamlessly upgrade to a 10 Gigabit fiber network, enjoying enhanced speed and stability with data transfers up to 10Gbps. Its four open SFP+ slots offer flexible configuration, allowing you to choose multimode or single-mode fiber transceivers for extended range. Essential for mission-critical environments, it enables redundant, fault-tolerant connections to prevent downtime. Advanced features like Intel Virtualization Technology and 9K jumbo frame support ensure robust performance. This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation.It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.Add redundant connections in zero-downtime environments:- With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.Increase your network speed:- This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.Add scalable network connections to your server or workstation:- The network interface card is compatible with most 10GbE SFP+ transceivers.This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.- The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules.This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type.StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements.In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.Enhance your network capabilities:- The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer.The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.Specifications:Connector(s):- 1.- Connector Type(s):PCI Express x8.- 4.- Internal Ports:SFP+ Slot Environmental:- Operating Temperature:5°C to 50°C (41°F to 122°F).- Storage Temperature:-20°C to 60°C (-4°F to 140°F).- Humidity:20% ~ 80% RH Hardware:- Ports:4.- Interface:Fiber (10 Gigabit Ethernet).- Bus Type:PCI Express.- Card Type:Standard Profile.- Industry Standards:IEEE 802.3ae (10GBASE-LR/SR only) PCI Express Rev 3.0, using PCIe x8 (or higher) slot:- Chipset ID:Intel.- XL710 Indicators:- 4.- LED Indicators:Link/Activity (green) Packaging Information:- Shipping (Package) Weight:6.4 oz [182 g].- Package Length:6.7 in [17 cm].- Package Width:5.6 in [14.2 cm].- Package Height:1.2 in [30 mm].Performance:- Maximum Data Transfer Rate:20000 Mbps (20 Gbps).- Full-Duplex.- Compatible Networks:10 Gbps.- Full Duplex Support:Yes.- Jumbo Frame Support:9K max. tradeinn Techinn

QUAD SFP+ ADAPTER: 4 ports on SFP+ network card can provide redundancy, or be aggregated for demanding applications; Data Center Bridging (DCB), virtualization incl. VT-c, SAN & iSCSI offload support TECH SPECS: 10 Gbps per port | 4 SFP+ Ports, MSA Compliant | Intel XL710| MMF & SMF Fiber Support | PCIe 3.0 x8 | PXE Boot | 9K Jumbo Frames | Link Aggregation | VLAN | Full profile | 2 Yr. Warranty TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits to validate performance; converged network adapter is compatible w/ leading servers like Dell PowerEdge, HPE ProLiant & Lenovo ThinkSystem FLEXIBLE: Use MSA compliant SFP+ module or direct attach cable (DAC) supporting different fiber types; 10 Gigabit Ethernet NIC works w/leading brands of switches, routers, & devices like Cisco & HPE WIDE HYPEVISOR & OS COMPATIBILITY: Fiber LAN card compatible w/Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); VMWare ESXi 5.0, 5.1+ CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer & Wi-Fi Auto Switch utilities
