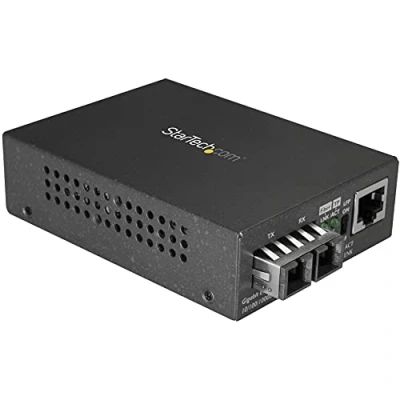

StarTech.com Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network 10km Gigabit Ethernet 1310nm w/ Auto Negotiation (MCMGBSCSM10)

Startech Mcmgbscsm10 Converter. Extend your Gigabit Ethernet network up to 10 km with the StarTech.com MCMGBSCSM10 fiber media converter. This cost-effective solution seamlessly converts copper to fiber or fiber to copper, connecting remote sub-networks. Featuring an RJ45 port with triple-speed auto-negotiation and an SC fiber port, it integrates easily into existing infrastructures. Delivering reliable and scalable connectivity for connecting distant locations or expanding large workgroups, it supports single-mode fiber for robust performance. Backed by a 2-year warranty and lifetime technical support. This fiber media converter converts and extends a Gigabit Ethernet fiber (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.Extend your GbE network cost-effectively:The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks.Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.Reliable and scalable network connectivity:Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance.It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility.The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage:- Converts and extends a Gigabit fiber (1000 Mbps) network over single-mode fiber on 1000BASE-LX networks.- Provides a cost-effective Ethernet to fiber/copper to fiber link.- Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection).Specifications:Network:- Maximum data transfer rate:1000 Mbit/s.- Converter input interface:10Base-T,100Base-TX,1000Base-T.- Converter output interface:100Base-LX.- Networking standards:IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x.- Ethernet interface type:Fast Ethernet, Gigabit Ethernet.- Ethernet LAN data rates:10,100,1000 Mbit/s.- Jumbo frames support:Yes.- Jumbo frames:9000.- Auto MDI/MDI-X:Yes.- Store-and-forward:Yes.- Duplex system:Full Ports & interfaces:- Connectivity.Technology:Wired.- Ethernet LAN (RJ-45) ports:1.- Fiber ports quantity:1.- Fiber optic connector:SC.Performance:- Maximum transfer distance:10000 m.- Wavelength:1310 nm.- Wavelength-division multiplexing (WDM):No.- Fiber mode structure:Single-mode.- Mean time between failures (MTBF):50000 h Design:- Internal:No.- LED indicators:Activity, Link, Power Design:-.Certification:CE, FCC Power:- Input voltage:100.- 240 V.- Input current:0.5 A.- Output voltage:5 V.- Output current:2.6 A.- External power adapter:Yes.- Power plug type:Type N Weight & dimensions:- Width:105 mm.- Depth:70 mm.- Height:26 mm.- Weight:196 g Operational conditions:- Operating temperature (T-T):0.- 50 °C.- Storage temperature (T-T):-10.- 70 °C.- Operating relative humidity (H-H):5.- 90% Packaging data:- Package width:138 mm.- Package depth:285 mm.- Package height:66 mm.- Package weight:560 g Packaging content:- AC adapter included:Yes.- Quick installation guide:Yes Technical details:- Sustainability certificates:RoHS. tradeinn Techinn

THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty and free lifetime technical support on this converter and has been the choice of IT professionals and businesses for over 30 years. ETHERNET OVER FIBER EXTENSION: Use this fiber media converter to convert and extend a Gigabit fiber (1000 Mbps) network up to 10km (6.2mi) over singlemode (SM) fiber on 1000BASE-LX networks. ADVANCED FEATURES: This SC fiber media converter provides a switch supporting the Link Fault Passthrough (LFP) function, LED indicators for simple monitoring and supports a full duplex operation. PLUG AND PLAY: Designed for ease of use, this copper to fiber media converter provides a quick and easy setup. It can be used as a standalone device or mounted to a wall. MAXIMUM DURABILITY: Built to withstand harsh environments, this rugged media converter has a durable housing, and has an operating temperature range of 0°C-50°C (32°F-122°F).
