SUPLA SBW 02 WiFi Receiver with 2 Channels for Gate Control Remote App Plastic Metal

Name: SUPLA SBW 02 WiFi Receiver with 2 Channels for Gate Control Remote App Plastic Metal
Brand: Supla
SKU: b2bbbf350d8d08ae57a9a54c448036e0

1/1

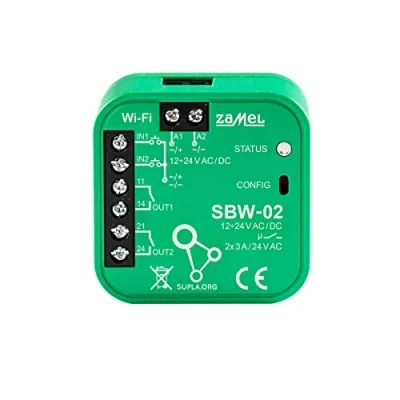

Image of SUPLA SBW 02 WiFi Receiver with 2 Channels for Gate Control Remote App Plastic Metal

Amazon Marketplace

Prices from

48.14

Description

Amazon Endless possibilities of control with the innovative WiFi receiver SBW-02 for an intelligent home and optimal control. Mounting of the housing: drive the gate or installation box Ø 60 mm; power supply: 12-24 V AC/DC; transmission: Wi-Fi 2.4 GHz 802.11 b/g/n. Transmission Power: ERP < 20mW; Maximum Output Current: 3A/24V AC; Rated Frequency: 50Hz; Rated Power Consumption: 0.6W; Number of Inputs: 2; Number of Output Channels: 2 Relay contacts: 2 x NC 3 A/250 V AC (voltage-free contact); Number of terminals: 8 (lines up to 2.5 mm2 cross section). Operating temperature range: -20 ÷ + 55 °C; Case protection: IP20; Maximum output load: 3 A/250 V AC.

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 48.14

Description (1)

Endless possibilities of control with the innovative WiFi receiver SBW-02 for an intelligent home and optimal control. Mounting of the housing: drive the gate or installation box Ø 60 mm; power supply: 12-24 V AC/DC; transmission: Wi-Fi 2.4 GHz 802.11 b/g/n. Transmission Power: ERP < 20mW; Maximum Output Current: 3A/24V AC; Rated Frequency: 50Hz; Rated Power Consumption: 0.6W; Number of Inputs: 2; Number of Output Channels: 2 Relay contacts: 2 x NC 3 A/250 V AC (voltage-free contact); Number of terminals: 8 (lines up to 2.5 mm2 cross section). Operating temperature range: -20 ÷ + 55 °C; Case protection: IP20; Maximum output load: 3 A/250 V AC.
