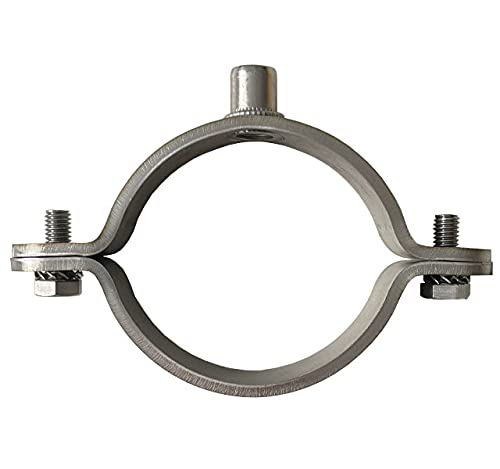

T316 Stainless Steel Munsen type bossed Pipe clip M10 Boss od 36 39 mm

General description Sometimes called Munsen rings, bossed pipe clamps are very similar to a two-bolt pipe clip, but with a threaded boss attached. The threaded boss allows the pipe clamp to be fixed to a base plate via a length of studding. The added advantage is the matrix, which connects multiple clamps in different orientations, allowing for great flexibility. Developed to accommodate various pipe support designs, these clamps are designed to be cost-effective in stainless steel. The unique design enables a multitude of options, allowing these clamps to be used to clamp, guide, or hang pipes in position with a minimum of basic components. Technical specifications Material: T316 Marine grade stainless steel Pipe OD: 36-39 mm Diameter (D): 39 mm Plate dimensions (P): 66 mm Width x Thickness: 25 mm x 3 mm Hole center to edge of plate: 10 mm Distance between halves (R): 4 mm Includes: 2 off M16 x 16 mm setscrews and shake-proof washers Manufacturing tolerances: +/- 1 mm Other
