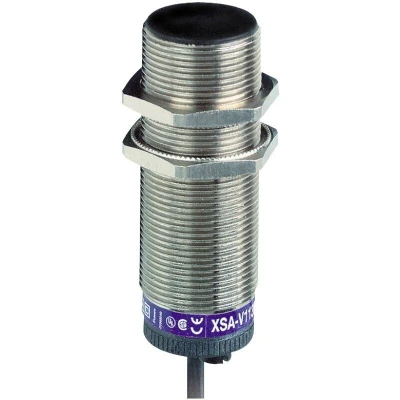

Telemechanical Sensors XSAV12373 XS inductive detector ctrl rot metal M30 L81mm flush mountable Sn10mm DC3 PNP NC 2m

General description This Telemechanical XSAV12373 XS inductive detector is designed for control rotation applications. It provides an economical solution for detecting slippage, belt breakage, drive shaft shear, and overload. This sensor is particularly suitable for use in conveyor belts, bucket elevators, Archimedean screws, grinders, crushers, pumps, centrifugal dryers, and mixers. Technical specifications Type: Inductive cylindrical sensor Diameter: 30 mm Length: 81 mm Thread: M30 x 1.5 Detection distance: 10 mm Frequency range: 120 pulses/min to 3000 pulses/min Cable length: 2 m Power supply: DC 12-48V Wiring: 3 wires (PNP) Protection rating: IP 67 Other information Compliance: UL, CSA, CCC, CE

PROXIMITY SENSOR, INDUCTIVE, ROTATION MONITORING, 10 MM SENSING DISTANCE, 12-48 VDC, 200 MA, PNP, 1 NC, CYLINDRICAL M30, FLUSH MOUNTABLE, 2 M CABLE LENGTH, IP67
