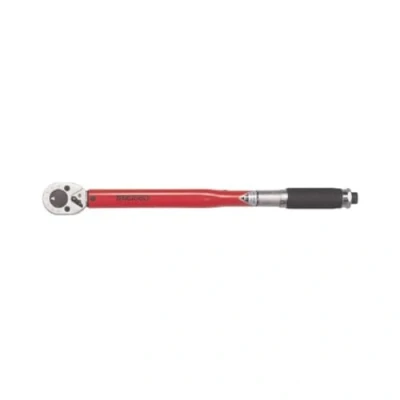

Teng 1292AGE4R 1292AG ER4 70 350nm 1/2 inch Torque Wrench Drive

General description The Teng 1292AG-E4R is a bi-directional torque wrench designed for both left and right-hand threads. It features a push-through square drive and a flip reverse ratchet action, making it ideal for torque checking. The wrench is equipped with an in-built angular gauge for easier after tightening and a click-type mechanism that signals when the required torque is reached. It also includes an additional ft/lb reference scale and is marked to indicate the correct pressure application point. The twist locking facility ensures that the set torque is maintained accurately. Technical specifications Primary Range: 70-350 Nm Secondary Range: 50-250 ft-lb Scale Resolution: 0.738 Length: 632 mm Accuracy: +/- 4% Conforms to: ISO6789 Ratchet Mechanism: 24 teeth (DIN3122) with 15° increments Usage The Teng 1292AG-E4R torque wrench can be used for both tightening and final torque checking. It is designed to torque fasteners in both clockwise and counterclockwise directions. Other

HIGH TORQUE RANGE – Provides a wide 70–350Nm (50–250 ft.lb) range with 5Nm increments, ideal for automotive, workshop and mechanical applications. BI‑DIRECTIONAL USE – Push‑through square drive enables accurate torque checking on both left‑ and right‑hand threads. PRECISION ACCURACY – Manufactured to DIN 3122 with ±4% accuracy, ensuring reliable tightening and consistent results every time. ANGULAR GAUGE INCLUDED – Features a built‑in degree scale for precise after‑tightening, perfect for cylinder head and critical torque applications. DURABLE & COMFORTABLE – Satin‑finish ratchet head with a robust rubber handle for excellent grip and long‑lasting workshop performance.
