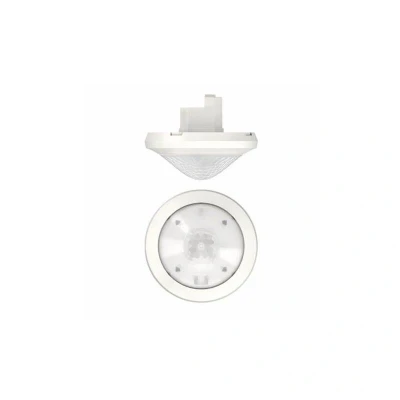

Theben theRonda S360 100 UP presence sensor white

Lights.co

theRonda S360-100 UP - Passive presence detector (IR) for flush-mounted ceiling installation TheRonda S360-100 passive infrared presence detector automatically controls lighting indoors and outdoors depending on the presence of people and ambient brightness. It is installed in a flush-mounted box (Ø 55 mm, NIS, PMI). The sensor impresses technically with a variety of features, such as the adjustable brightness switching value and the teach-in function. Operation is semi-automatic or fully automatic (switchable). The follow-up time can be shortened for short presence. The detection area (360°) has a radius of approx. 9 m and covers an area of approx. 64 m². If desired, the detection area can be reduced by means of the enclosed clips. If preset values and settings are to be changed, this can only be done using one of the remote controls available as an accessory: User remote control theSenda S, Service remote control theSenda P and App remote control theSenda B. - Mounting height: 2 to 4 m - Power consumption: ~ 0.1 W - Brightness setting range: 30 to 3,000 lux, permanently on - Light run-on time: pulse (0.5 s), 10 s - 60 min - Channel A light: relay, 230 V - fully automatic operation - Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs - Brightness switching value adjustable, teach-in function - Test operation possible to check function and detection range - Incandescent/halogen lamp load: 2,300 W - Fluorescent, compact/fluorescent lamps: 1,150 VA (cos φ = 0.5) - Inrush current: max. 800 A/200µs - LED lamp 2 W: 600 W - Connection by means of screw terminals - max. cable cross-section: 2 x 2.5 mm² - Ambient temperature: - 15 °C to + 50 °C - Protection class: IP54 (when installed)

ManoMano

General description Passive infrared presence detector designed for recessed ceiling mounting, featuring a 360° circular detection zone with a range of up to Ø 9 m (64 m²). This device automatically controls lighting systems based on presence and brightness levels. Technical specifications Detection zone: 360° Detection range: up to Ø 9 m (64 m²) Relay output: 230 V Usage Automatic presence- and brightness-dependent control of lighting systems Suitable for various lamp types: fluorescent (FL/PL/ESL), halogen, incandescent, and LED lamps Adjustable brightness switching value with a teach-in function Reduced switch-off delay for transient presence Manual switching option via push-button or switch with automatic detection Pulse function for staircase lighting timers
